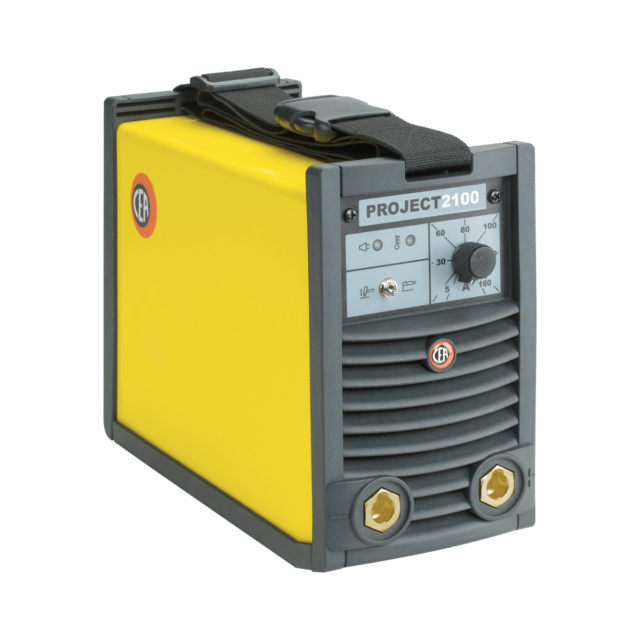

PORTABLE AND POWERFUL
INVERTER POWER SOURCE FOR ELECTRODE WELDING
PROJECT 2100, are DC inverter power sources, built-in and ergonomic and robust chassis standard equipped with a carrying belt for easy transportation.
PROJECT
Other characteristics
- Powerful 210 A @ 30% – 145 A @ 60%
- Excellent welding characteristics with any type of electrode
- 2 available welding processes: MMA – TIG
- Possibility to work with adequate size power generator sets
- Carrying belt for easy transportation
- Automatic Hot Start to improve the arc striking with the most difficult electrodes
- Built-in Arc Force to automatically select the best welding arc dynamics
- Electrode Anti-sticking function
Available accessories
Discover all available accessories
Rainbow Bag
Rainbow Bag
Datasheet
PROJECT: Technical features
| TECHNICAL DATA | PROJECT 2100 | ||
| Single phase input 50/60 Hz | V | +10% -10% |
230 |
| Input Power @ I2 Max | kVA | 11,1 | |
| Delayed Fuse (I2 @ 100%) | A | 25 | |
| Power Factor / cos φ | 0,63 / 0,99 | ||
| Efficiency Degree | 0,84 | ||
| Open circuit voltage | A | 65 | |
| Current range | A | 5 – 210 | |
| Duty cycle at (40°C) | A 100% | 120 | |
| A 60% | 145 | ||
| A 30% | 210 | ||
| Standards | EN 60974-1 • EN 60974-10 | ||
 |
|||
| Protection class | 23 S | ||
| Dimensions (LxWxH) | mm | 365 x 135 x 230 | |
| Weight | kg | 7,6 | |
