THE FIRST – THE GAME CHANGER

MIG-MAG INVERTER COMPACT EQUIPMENT

DOGMA is an innovative welding equipment that barges into the multi-process compact MIG market for the first time in the world. DOGMA’s concept breaks from tradition with its game changing design.

PATENT PENDING: PA102974IT01

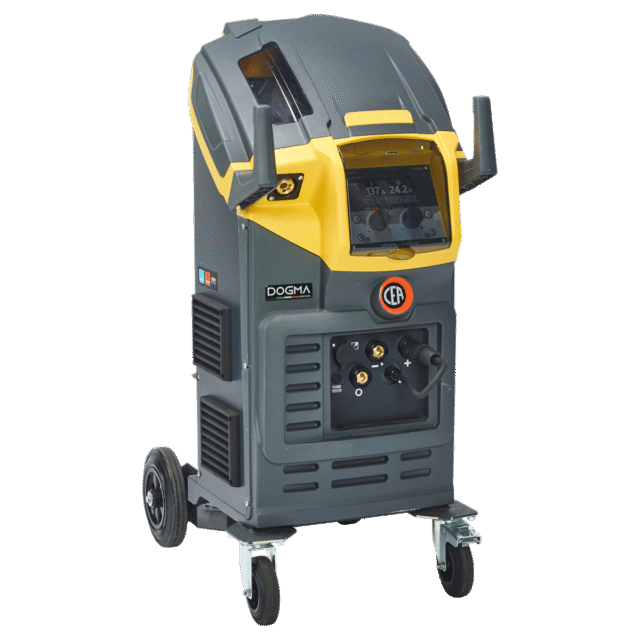

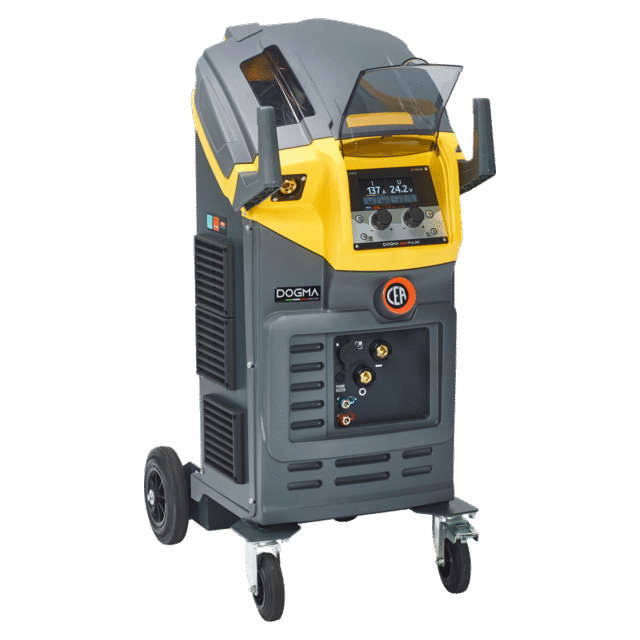

DOGMA

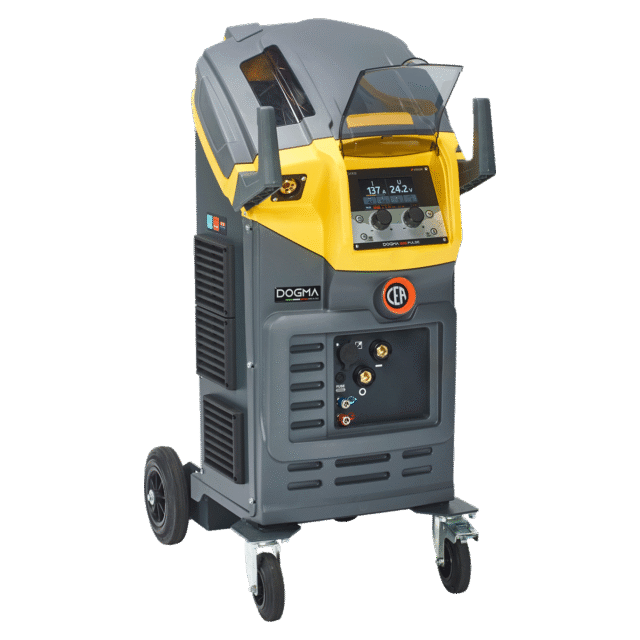

DOGMA PULSE

Innovative, unique, unparalleled

DOGMA is unique and unparalleled in its ability to combine an ergonomic design, together with excellent welding characteristics thanks to its precise and stable arc control. This makes DOGMA perfect for all qualified welding applications in all industrial sectors.

New level of ergonomics

DOGMA is born with the welder’s comfort at the centre of its development, keeping CEA’s distinctive quality: every feature is aimed to reduce and simplify the operator’s preparation time and tasks for a better satisfaction which leads to greater results.
DOGMA are standard equipped with the new X VISION interface, simple and complete, for the total control and monitoring of all the welding parameters.

Other characteristics

MMA – TIG LIFT – MIG/MAG Synergic & Manual and for DOGMA PULSE: PULSED MIG and DUAL PULSE
Feeding mechanism with 4 rolls of large diameter
Double groove rolls replaceable without any tool
“Energy saving” to operate the power source cooling fan and torch water cooling only when necessary
Ability to partially or totally lock the equipment with access key by password

Technical features

DOGMA PACKAGE

DOGMA PULSE XV:

SYNERGIC PROGRAMS

Fe – CrNi – AlMg – AlSi

DOGMA XV / DOGMA PULSE XV PREMIUM:

SYNERGIC PROGRAMS

Fe – CrNi – AlMg – AlSi – CuSi3 – AlBz8 – FCW (Rutil – Basic – Metal) Duplex – Super Duplex

vision.COLD

for low heat transfer MIG/MAG welding

vision.ULTRASPEED

to weld small and medium thickness at a far higher speed

E.C.P. – Extra Curve Package

vision.ARC

Thanks to vision.ARC, the electric arc is monitored continuously by the microprocessor which manages the welding process in real time: all the parameters are processed and modified by the control that digitally manages the short circuits of MIG-MAG, keeping the arc stable and precise despite any change of the external conditions. The welding process is always under control from arc striking, by Wire Start Control (WSC), to when the arc is interrupted by Burn-Back Control.

vision.PULSE

vision.PULSE allows a constantly controlled short arc pulse welding, by optimizing the results of traditional pulse welding.

This enables to reduce the high heat input, typical in pulse welding, with a consequent reduction in distortions, an improvement off the puddle and considerable increase in welding speed too.

Dual.PULSE

Dual.PULSE favours a further reduction in the heat transfer to the workpiece by minimizing its deformation and it produces premium quality aesthetic beads similar to TIG finishing. Dual.PULSE is extremely useful when welding aluminium and stainless steel.

X VISION CONTROL DISPLAY MIG

X Vision control display with “TWO CLICK KNOB” encoders for the pre-setting and monitoring of all the welding parameters:

User friendly interface
Welding mode “cycle”
Personalized welding program storing and recalling
Possibility of copying job/s easily from one machine to another via USB
Advance setting infographic

DOGMA: UNIQUE FEATURES

EASY-TO-LOAD WIRE COIL: thanks to the spool holder’s top frontal ergonomic position and inclined angle that allows a much easier placement.
INCLINED TORCH CONNECTION: high position of the torch connector with inclined exit to optimize the welding wire’s flow.
GREAT FRONTAL VISIBILITY: of the wire feeder compartment and control interface at first glance.
REDUCED FLOOR OCCUPATION: the equipment’s vertical development saves space and floor area.

Available accessories

Discover all available accessories

Configurator

Cea CL-1100

Cea CL-1100 cooling liquid – 5 l Tank

CEA Torch CX 251/3

CEA Torch CX 251/3 3 m wire Ø 0.6÷1.0 CO2 260A @60% / Mix 200A @60%

CEA Torch CX 351/A

CEA Torch CX 351/A 3 m wire Ø 1.0÷1.2 for Aluminium CO2 300A @60% / Mix 220A @60%

CEA Torch CX 353/4

CEA Torch CX 353/4 4 m wire Ø 0.8÷1.2 CO2 340A @60% / Mix 290A @60%

CEA Torch CXH 302/4

CEA Torch CXH 302/4 4 m wire Ø 0.8÷1.2 water cooled CO2 300A @100% / Mix 250A @100%

CEA Torch CXH 402/4

CEA Torch CXH 402/4 4 m wire Ø 0.8÷1.6 water cooled CO2 500A @100% / Mix 450A @100%

CEA Torch CXH 302/4 Up/Down-17p

CEA Torch CXH 302/4 Up/Down-17p 4m – wire: Ø 0,8÷1.2 – CO2 300A @100% / Mix 250A @100%

CEA Torch CX 353/4 Up/Down-17p

CEA Torch CX 353/4 Up/Down-17p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%

CEA Torch CXH 402/4 Up/Down-17p

CEA Torch CXH 402/4 Up/Down-17p 4m – wire: Ø 0,8÷1.6 – CO2 500A @ 100% / Mix 450A @100%

CEA Digitorch DXH 302/4-D

CEA Digitorch DXH 302/4-D 4m – wire: Ø 0,8÷1.2 – CO2 300A @100% / Mix 250A @100%

CEA Digitorch DX 353/4-D

CEA Digitorch DX 353/4-D 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%

CEA Digitorch DXH 402/4-D

CEA Digitorch DXH 402/4-D 4m – wire: Ø 0,8÷1.6 – CO2 500A @100% / Mix 450A @100%

Push Pull Torch PP 401 D 8 m 24 V water cooled

Push Pull Torch PP 401 D 8 m 24 V - wire Ø 0,8÷1,2 water cooled (to be ordered with 031107 or 031113)

CEA Torch RTX 26.4

CEA Torch RTX 26.4 4 m – 180 A 35%

Push Pull Synchronizer 24/42V (DOGMA)

Push Pull Synchronizer PC Board KIT 24 / 42 V for DOGMA (to be ordered with the Push pull torch)

35 mm² / 4 m Ground cable with clamp

50 mm² / 4 m Ground cable with clamp

Reducer with flowmeter and 1 manometer

Torch support for DOGMA

Torch support for DOGMA (included with any power-source)

Gallery

DOGMA / DOGMA PULSE at work

Datasheet

DOGMA / DOGMA PULSE: Technical features

TECHNICAL DATA			DOGMA XV			DOGMA PULSE XV
TECHNICAL DATA			272 / 272 W	322 / 322 W	402 / 402W	276 / 276 W	326 / 326 W	406 / 406 W
Three phase input 50/60 Hz	V	+20% -20%	400			400
Input Power @ I₂ Max	kVA		11,0	12,6	16,8	11,0	12,6	17,3
Delayed Fuse (l eff)	A		16	16	20	16	16	20
Power Factor / cos φ			0,74/0,99	0,87/0,99	0,92/0,99	0,74/0,99	0,87/0,99	0,92/0,99
Efficiency Degree			0,89	0,88	0,88	0,89	0,88	0,88
Open circuit voltage	V		60	63	63	60	63	63
Current range	A		10-270	10-320	10-400	10-270	10-320	10-400
Duty cycle at (40°C)	A 100%		180	240	300	180	240	300
	A 60%		200	270	340	200	270	340
	A %		270(30%)	320(35%)	400(35%)	270(30%)	320(35%)	400(35%)
Wires	Ø mm		0,6-1,6	0,6 – 1,6	0,6 – 1,6	0,6-1,6	0,6 – 1,6	0,6 – 1,6
Coil	Ø mm		300			300
Standards			EN 60974-1 • EN 60974-5 • EN 60974-10
Standards
Protection Class	IP		21S			21S
Dimensions (LxWxH)	mm		792 X 463 X 1047			792 X 463 X 1047
Weight	kg		45 / 54 (W)	48 / 57 (W)	53 / 62 (W)	45 / 54 (W)	48 / 57 (W)	53 / 62 (W)
