MOBILE PULSE PP
The cutting edge of multiprocess
portable all-rounder
MIG-MAG INVERTER PORTABLE EQUIPMENT READY FOR THE PUSH PULL TORCH
Powerful welding equipment in the size of just one wire feeder unit: this is the main peculiarity of the MOBILE PULSE PP series.
MOBILE PULSE PP equipment thanks to their high technological conception, thanks to the setup for push-pull, are ideal for on-site work, maintenance job, car body repair and light fabrication work.
All MOBILE PULSE PP are ready to be connected to the Synchronization Kit and the Push-Pull Torch.
MOBILE PULSE PP

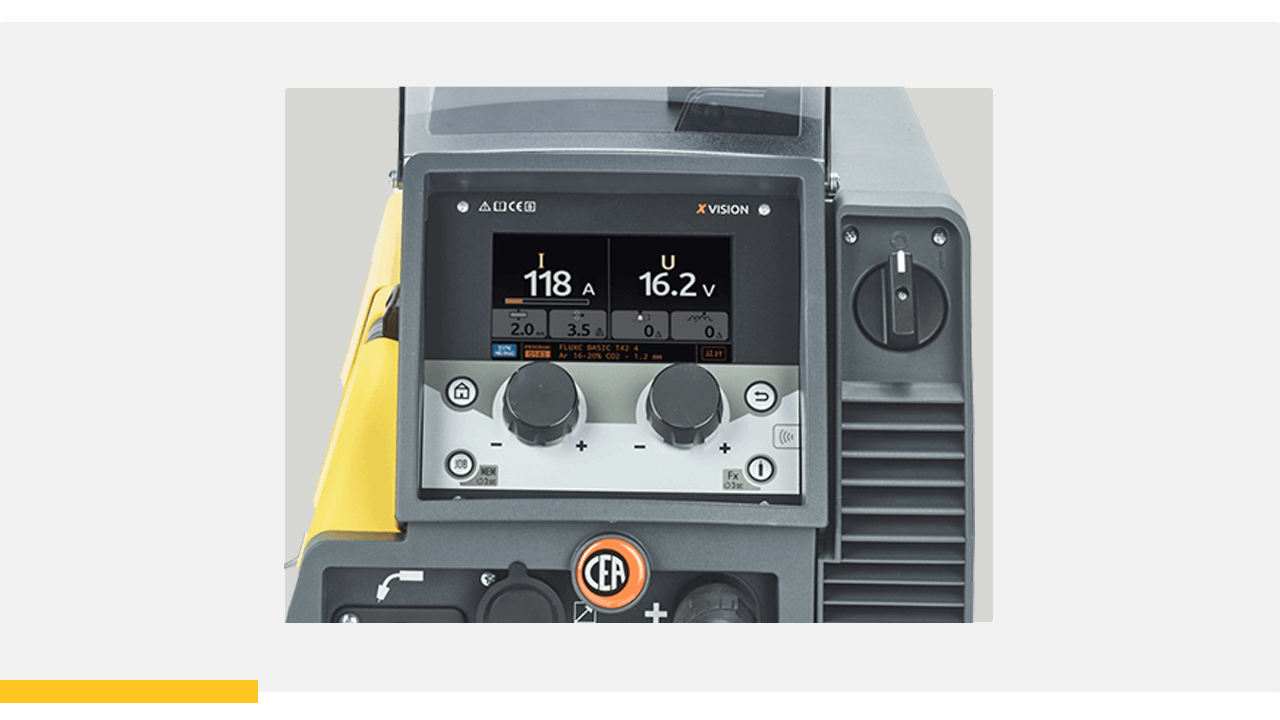

X Vision LCD panel interface
Versatile, easy-to-carry and user friendly, MOBILE PULSE PP equipment are standard equipped with the X VISION interface for the total control of all welding parameters.
Multi-process and synergic control
These innovative synergic and multi-process generators are ideal for MIG/MAG, MMA, and TIG welding with “Lift” mode.
MOBILE PULSE PP, thanks to the Pulse and Dual Pulse processes, guarantees high-quality performance on all materials, particularly stainless steel, galvanized steel, and aluminum. This minimizes any rework caused by welding spatter.
Other characteristics
- All MOBILE PULSE PP are ready to be connected to the Synchronization Kit and the Push-Pull Torch
- Digital control with synergic curves preset according to used type of material, gas and wire
- Built-in polarity changeover feature for most common gas and gasless wires
- Lodging for wire spool up to Ø 300 mm
- Professional single feeding mechanism with 4 rolls of Ø 37 mm
- Initial and final crater control
- Possibility to use Up/Down torches and Digitorch with display
- Ability to partially or totally lock the equipment with access key by Password
- LED LIGHT in the feeder compartment
Technical features
Available accessories
Discover all available accessories
Cea CL-1100
Cea CL-1100 cooling liquid – 5 l Tank
Trolley VT 101
Trolley VT 101 with 2 rolls for power source, cooling equipment and cylinder
Adaptor support plate for MOBILE with VT 101
Adaptor support plate for MOBILE with trolley VT 101
Trolley CT 401
Trolley CT 401 with 4 rolls for power source, cooling equipment and cylinder
Adaptor support plate for MOBILE with CT 401
Adaptor support plate for MOBILE with trolley CT 401
Adaptor support plate HRX 52 for CT 401
Adaptor support plate HRX 52 for CT 401
Accessory BOX kit for MOBILE
Accessory BOX kit for MOBILE (To be ordered only with HRX 52)
WK 2 extra-large wheel kit
WK 2 extra-large wheel kit
CEA Torch CX 251/3
CEA Torch CX 251/3 3 m wire Ø 0.6÷1.0 CO2 260A @60% / Mix 200A @60%
CEA Torch CXH 302/4 Up/Down-6p
CEA Torch CXH 302/4 Up/Down-6p 4m – wire: Ø 0,8/1,2 water cooled – CO2 300A @100% / Mix 250A @100%
CEA Torch CX 353/4 Up/Down-6p
CEA Torch CX 353/4 Up/Down-6p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%
CEA Torch RTX 26.4
CEA Torch RTX 26.4 4 m – 180 A 35%
Push Pull Torch PP 401 D 8 m 24 V water cooled
Push Pull Torch PP 401 D 8 m 24 V - wire Ø 0,8÷1,2 water cooled (to be ordered with 031107 or 031113)

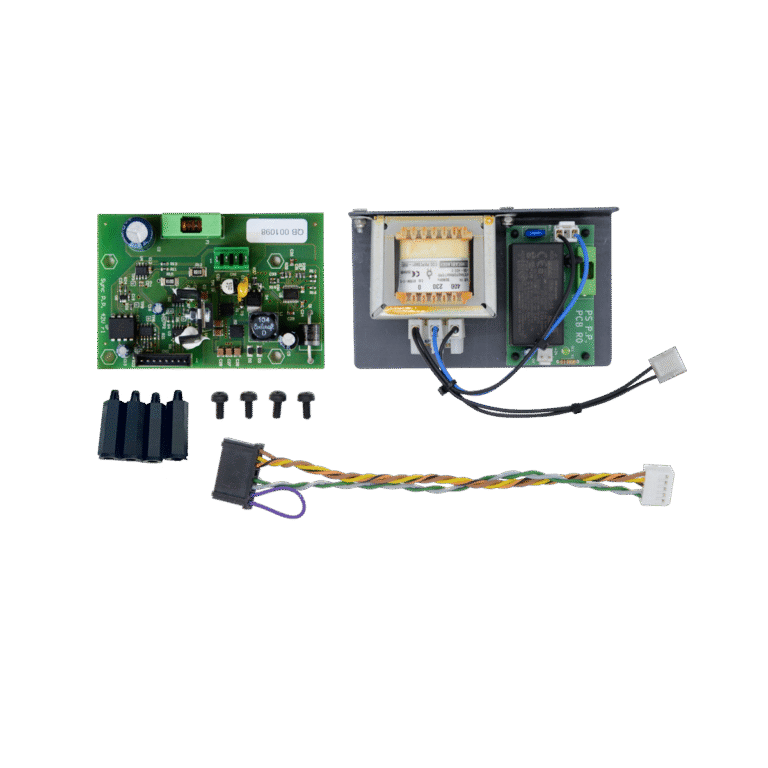

Synchronization Kit for 24-42V MOBILE 306 P
Synchronization Kit for 24-42V MOBILE 306 P
35 mm² / 4 m Ground cable with clamp
35 mm² / 4 m Ground cable with clamp
Reducer with 2 manometers
Reducer with 2 manometers
Reducer with flowmeter and 1 manometer
Reducer with flowmeter and 1 manometer
Datasheet
MOBILE PULSE PP: Technical features
| TECHNICAL DATA | MOBILE 306 PULSE PP | ||||
| MIG/MAG | TIG | MMA | |||
| Three phase input 50/60 Hz | V | +15% -15% |
400 | ||
| Input Power @ I2 Max | kVA | 13,3/11,9 PULSE | 11,6 | 11,9 | |
| Delayed Fuse (l eff) | A | 16 | 16 | 16 | |
| Power Factor / cos φ | 0,75/0,99 0,73/0,99 PULSE |
0,69/0,99 | 0,75/0,99 | ||
| Efficiency Degree | 0,86 | ||||
| Open circuit voltage | V | 60 | 60 | 60 | |
| Current range | A | 10-300
10-270 PULSE |
5-300 | 10-250 | |
| Duty cycle at (40°C) | A 100% | 180 | 180 | 180 | |
| A 60% | 200 | 200 | 200 | ||
| A X% | 300 (30%) 270(35%) PULSE |
300(30%) | 250(35%) | ||
| Wires | Ø mm | 0,6-1,2 | — | — | |
| Coil | Ø mm | 300 | — | — | |
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 | ||||
 |
|||||
| Protection Class | IP | 23S | |||
| Dimensions (LxWxH) | mm | 640 x 325 x 400 | |||
| Weight | kg | 20 | |||
