SK 165
Plasma cutting

SK 165

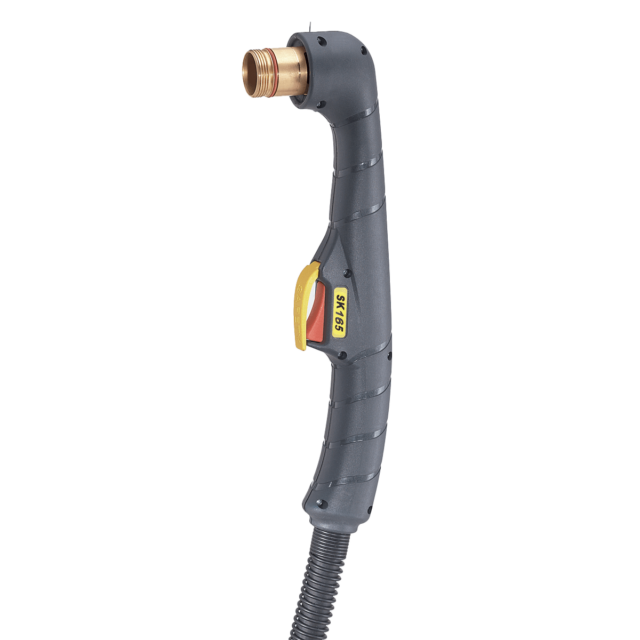

Manual high quality torch

Manual torch 160 A

SK165 torches for manual cutting are characterized by High Performance Cutting HPC technology which permits an increase in air quantity and speed, to better concentrate the plasma cutting beam and to stabilize the cutting arc.

Main features

  • high cutting speed
  • optimal quality and cleanliness of the cut surfaces
  • high concentration of the plasma cutting beam
  • lack of dross
  • reduction in the heat affected zone
  • longer life of the consumables
  • piercing on lamination achieved in shorter times
  • All SK torches are fitted with a coaxial cable which combines great flexibility to robustness and resistance to crushing.

Technical features

Datasheet

SK 165: Technical features

POS. CODE DESCRIPTION BLISTER QTY.
1 422678 Torch body 1
2 433609 O-ring 20
3 425024 Electrode 5
4 482137 Swirl ring 2
5 408640 Nozzle 45 A 10
6 408641 Nozzle 65 A 10
7 408642 Nozzle 85 A 10
8 408643 Nozzle 105 A 10
9 408644 Nozzle 125 A 10
10 408645 Nozzle 160 A 10
11 408632 Nozzle for gouging 105-125 A 10
12 408633 Nozzle for gouging 160 A 10
13 486021 External nozzle 45-85 A 1
14 486022 External nozzle 105-160 A 1
15 487633 Shield cap 45-85 A (manual cut) 2
16 487634 Shield cap 105-160 A (manual cut) 2
17 487641 Shield cap (gouging) 2
