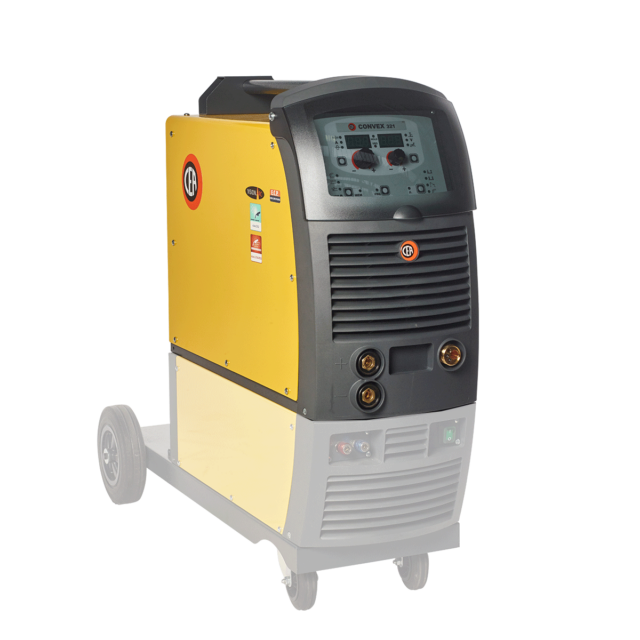

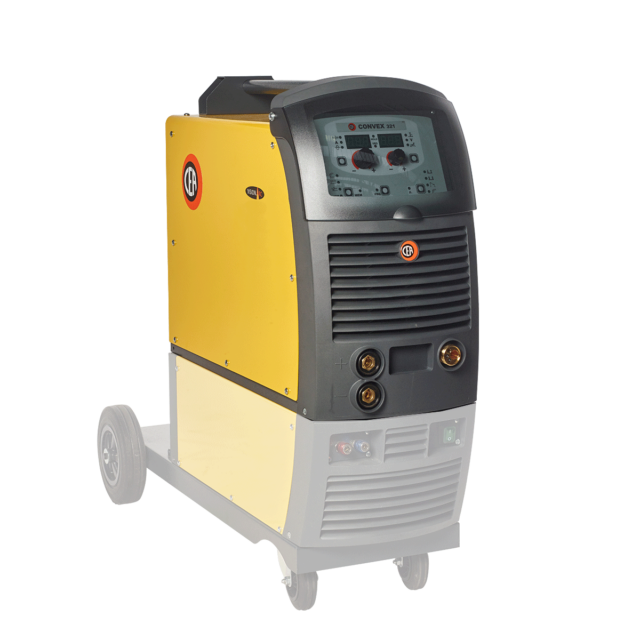

CONVEX / CONVEX PULSE

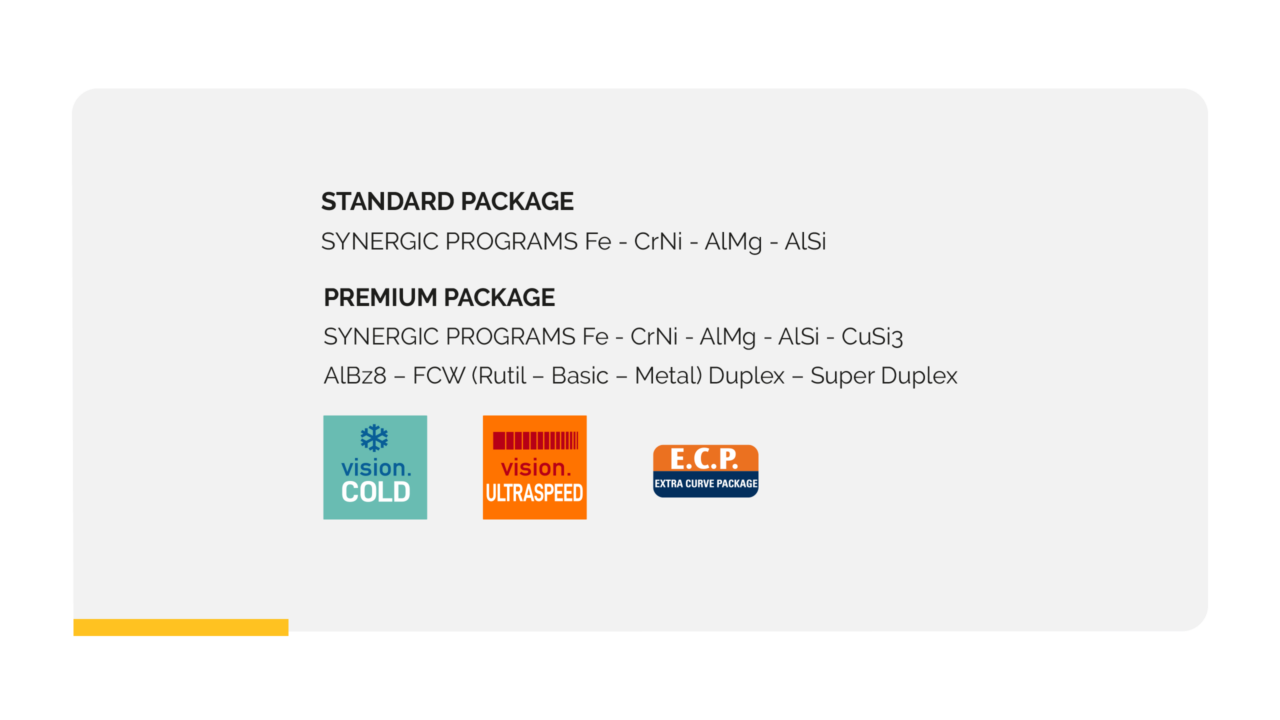

STANDARD PACKAGE:

SYNERGIC PROGRAMS

Fe – CrNi – AlMg – AlSi

PREMIUM PACKAGE:

SYNERGIC PROGRAMS

Fe – CrNi – AlMg – AlSi – CuSi3 – AlBz8 – FCW (Rutil – Basic – Metal) Duplex – Super Duplex

vision.COLD

for low heat transfer MIG/MAG welding

vision.ULTRASPEED

to weld small and medium thickness at a far higher speed

E.C.P. – Extra Curve Package

Thanks to vision.ARC, the electric arc is monitored continuously by the microprocessor which manages the welding process in real time: all the parameters are processed and modified by the control that digitally manages the short circuits of MIG-MAG, keeping the arc stable and precise despite any change of the external conditions. The welding process is always under control from arc striking, by Wire Start Control (WSC), to when the arc is interrupted by Burn-Back Control.

vision.PULSE allows a constantly controlled short arc pulse welding, by optimizing the results of traditional pulse welding.

This enables to reduce the high heat input, typical in pulse welding, with a consequent reduction in distortions, an improvement off the puddle and considerable increase in welding speed too.

Dual.PULSE favours a further reduction in the heat transfer to the workpiece by minimizing its deformation and it produces premium quality aesthetic beads similar to TIG finishing. Dual.PULSE is extremely useful when welding aluminium and stainless steel.

At the end of each weld, in any condition and with any metal, the digital control ensures a perfect wire cut thus avoiding the formation of the typical “wire globule” by ensuring the subsequent best arc striking.

WSC wire start control prevents any possible wire sticking to the workpiece or torch nozzle, by always ensuring a precise and “soft” arc striking.
