QUBOX / QUBOX PULSE
SYNERGIC MULTIPROCESS INVERTER PULSE EQUIPMENT WITH SEPARATE WIRE FEEDER
Arc welding
QF7 W PRO DRIVE
MIG WIRE FEEDER WITH HIGH TECHNOLOGY
DESIGNED FOR PROFESSIONAL APPLICATIONS
QF7 W PRO DRIVE proposes main selection and control keys as given directly from the power source. The available 2 independent displays provide the possibility of contemporarily visualizing and monitoring 2 different parameters at the same time.This wire feeder have to be plug only to all QUBOX or QUBOX PULSE series.
Other charateristics
- Digital control of all parameters, duly protected by a cover

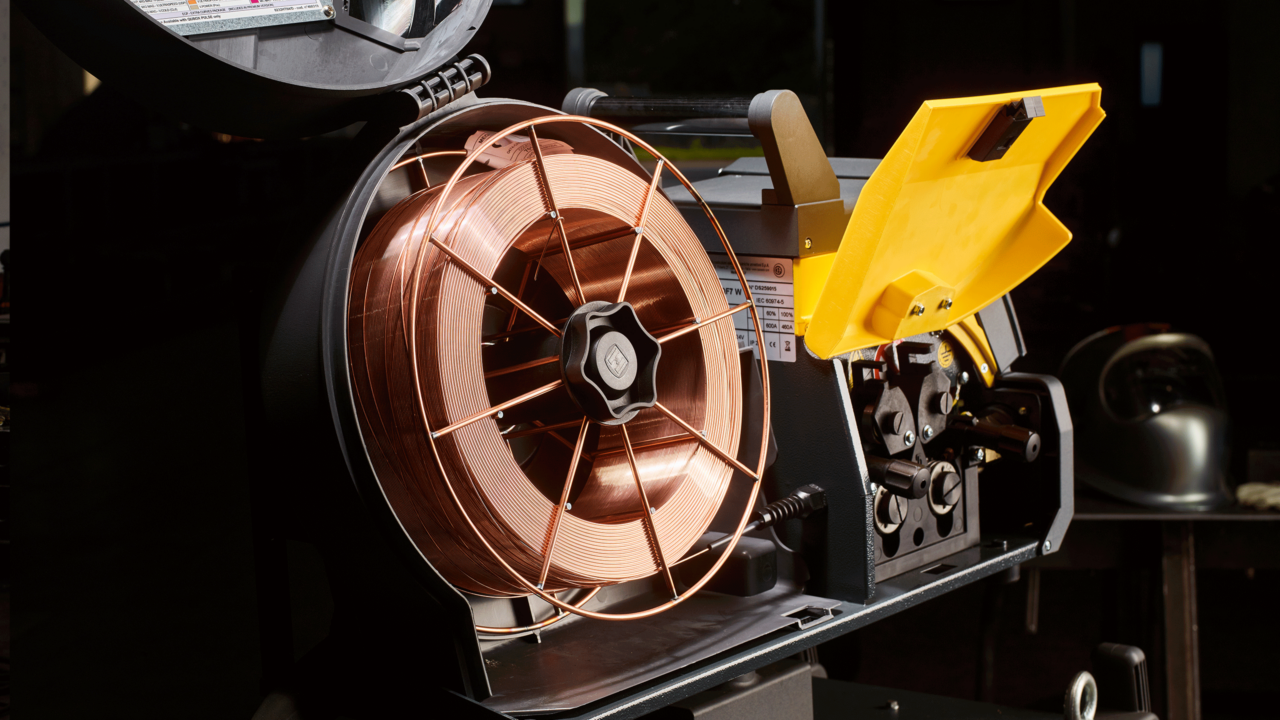

- Professional wire feeding mechanism with 4 rolls of large diameter for a precise and constant wire driving
- Graduated knob to achieve the most correct value of the wire pressure, which remains unchanged also after any arm opening and closing

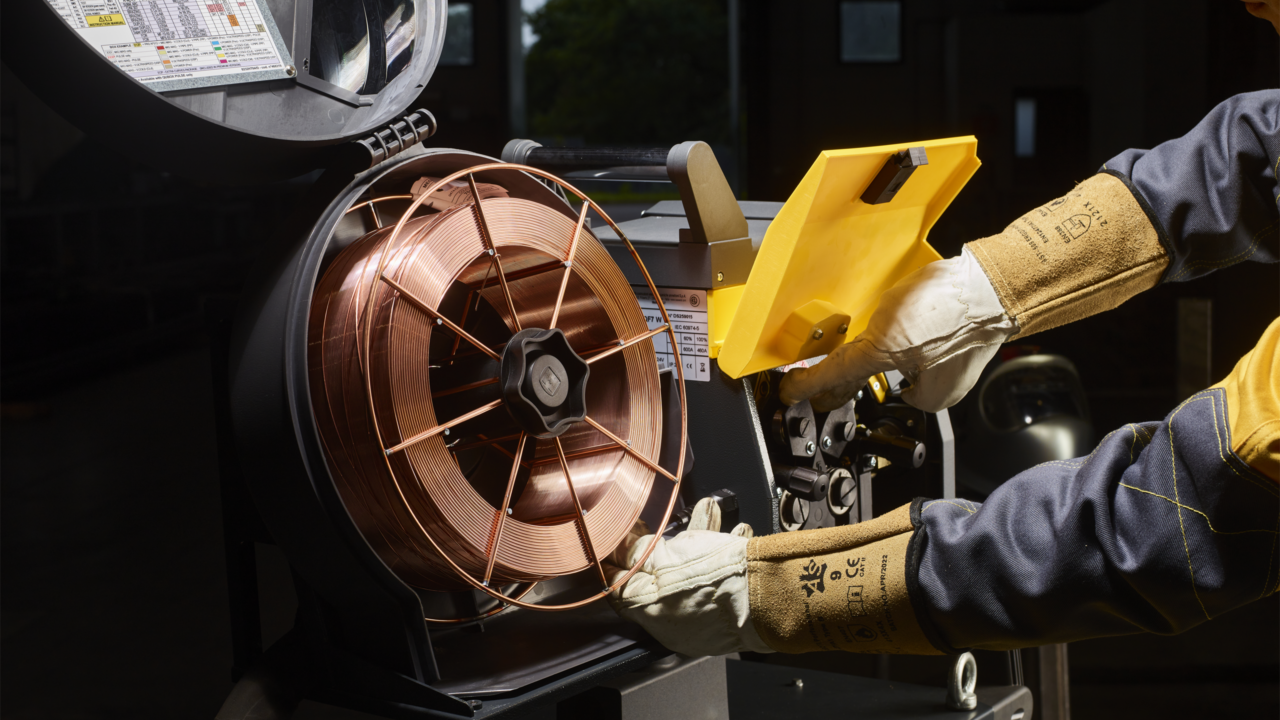

- Double groove rolls replaceable without any tool
- Lodging for wire spools up to 300 mm diameter
- Led light in the feeder compartment

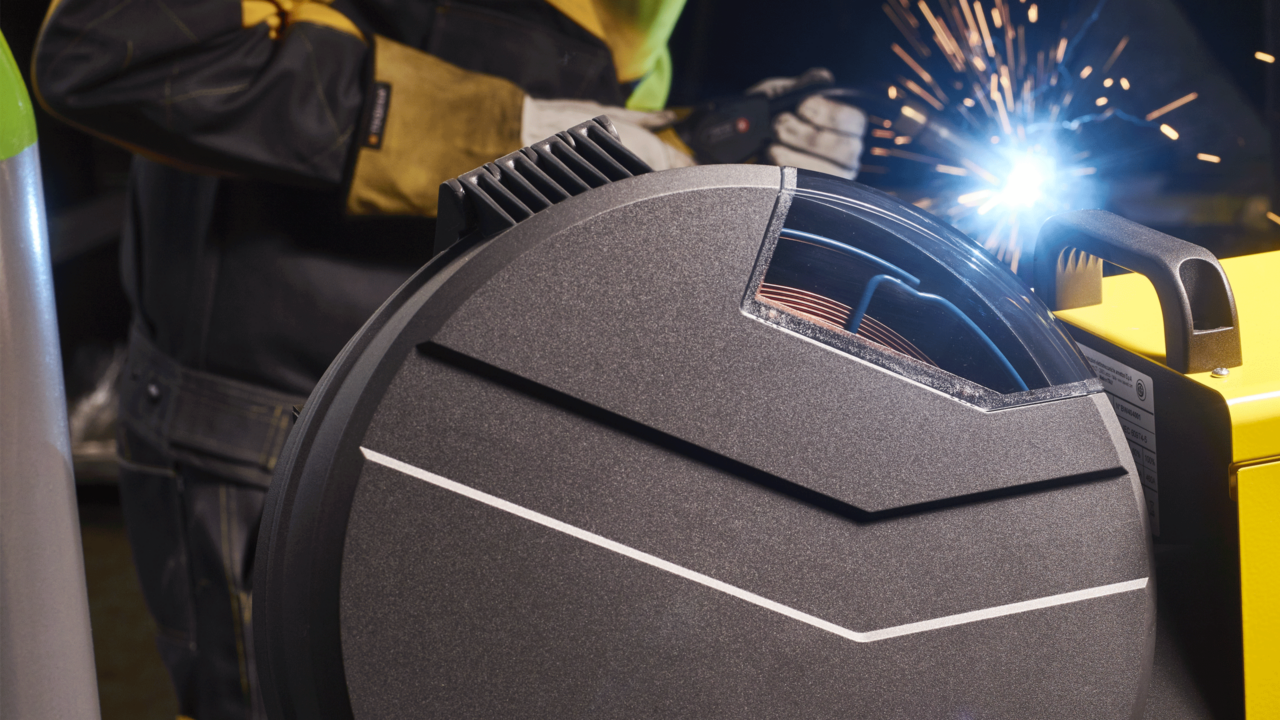

- Inspection window in the spool cover

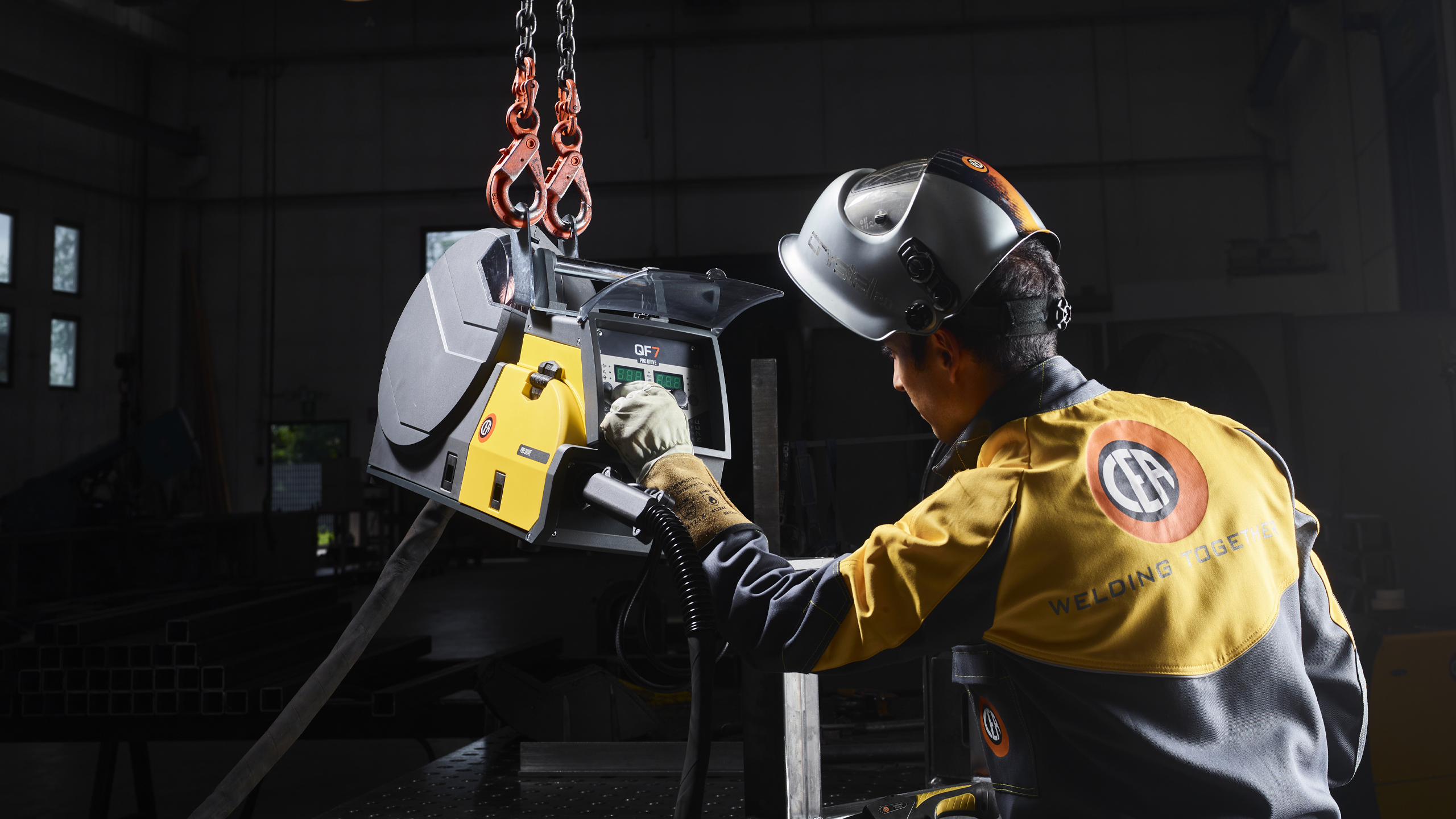

- HK1 Hanging Kit (optional)
Technical features
Gallery

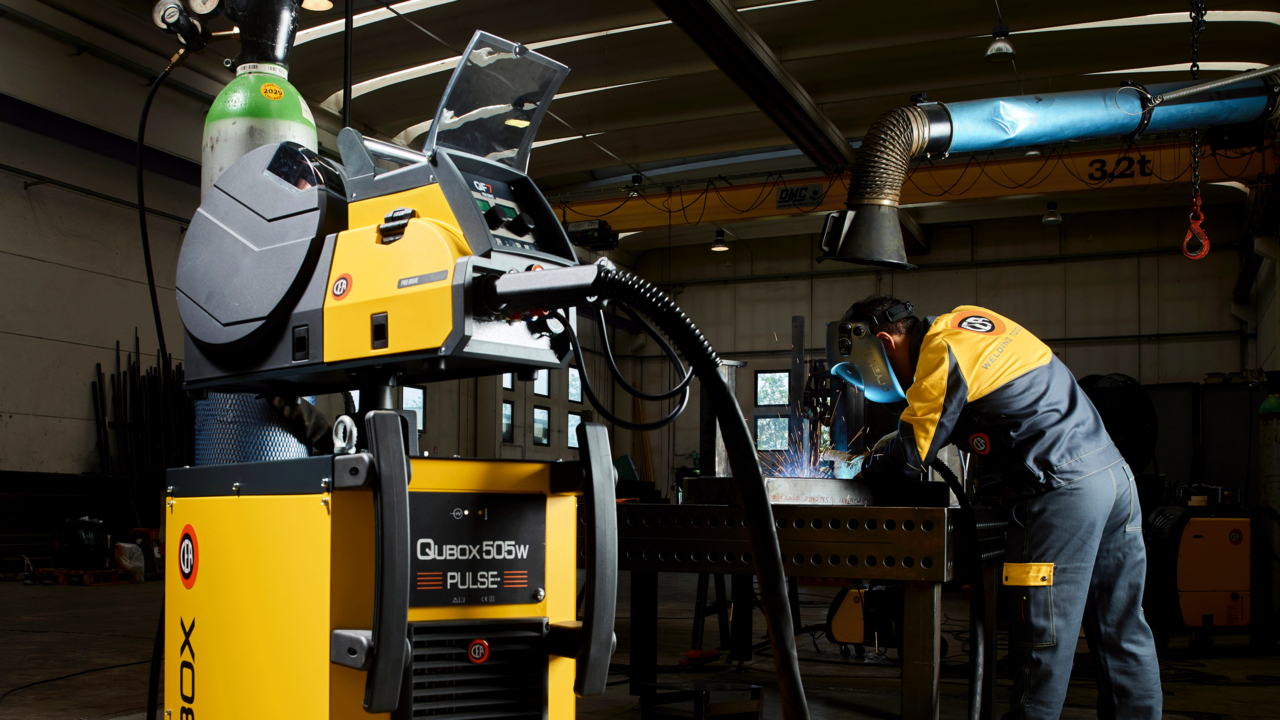

QF7 W PRO DRIVE at work
Datasheet
QF7 W PRO DRIVE: Technical features
| TECHNICAL DATA | QF7 W PRO DRIVE | |
| Single phase input 50/60 Hz | V | 24 DC |
| Motor power | W | 100 |
| Rolls | No. | 4 |
| Feeding speed | m/min | 1,5 / 25 |
| Solid wire (steel) | Ø mm | 0,6 / 1,6 |
| Spool | Ø mm
Weight |
300
20 MAX |
| Dimensions (LxWxH) | mm | 635 x 270 x 415 |
| Weight | kg | 15 |
