SHARK 35 Compressor

Plasma cutting

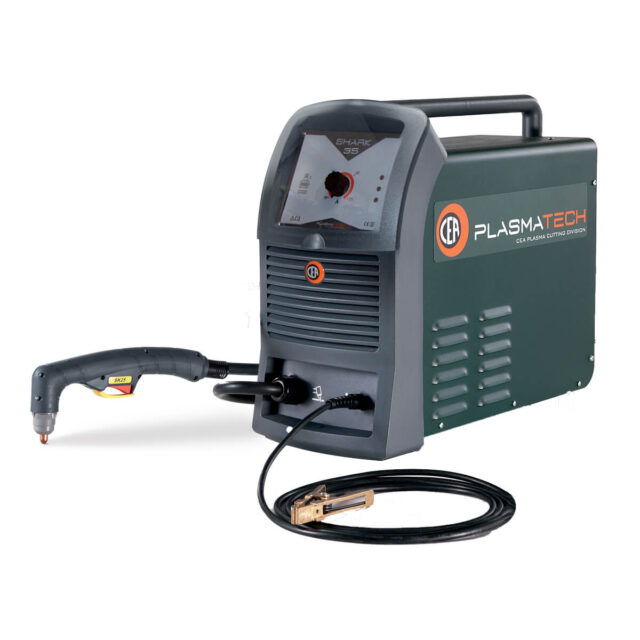

SHARK 35 Compressor

PLASMA CUTTING COMPRESSOR 30 A

SHARK 35 is the best solution for everyone who needs the maximum portability and power possible

SHARK 35 is the best cutting solution for everyone who needs the maximum portability and power possible. SHARK 35 Compressor is the best choice also for light fabrication work, agriculture and car body repairs.

Plasma cutting compressor 30 A

SHARK 35 is a new compressor plasma solution by CEA that evolves the lightweight and handy characteristics of SHARK 25 chassis with a more powerful inverter and compressor.

Main benefits

30A @ 40% for SHARK 35
SK25 Back Striking technology torch with coaxial cable
Built-in compressor
Portability and flexibility in the use
Electronic control for an excellent cutting

Other characteristics

Possibility of cutting grids and perforated lamination sheets
Contact cutting possibility
Torch with pilot arc
Cutting parameter stability within ±15% mains voltage fluctuations
Air filter incorporated into the compressor
Metallic main structure with shockproof fibre compound front frame

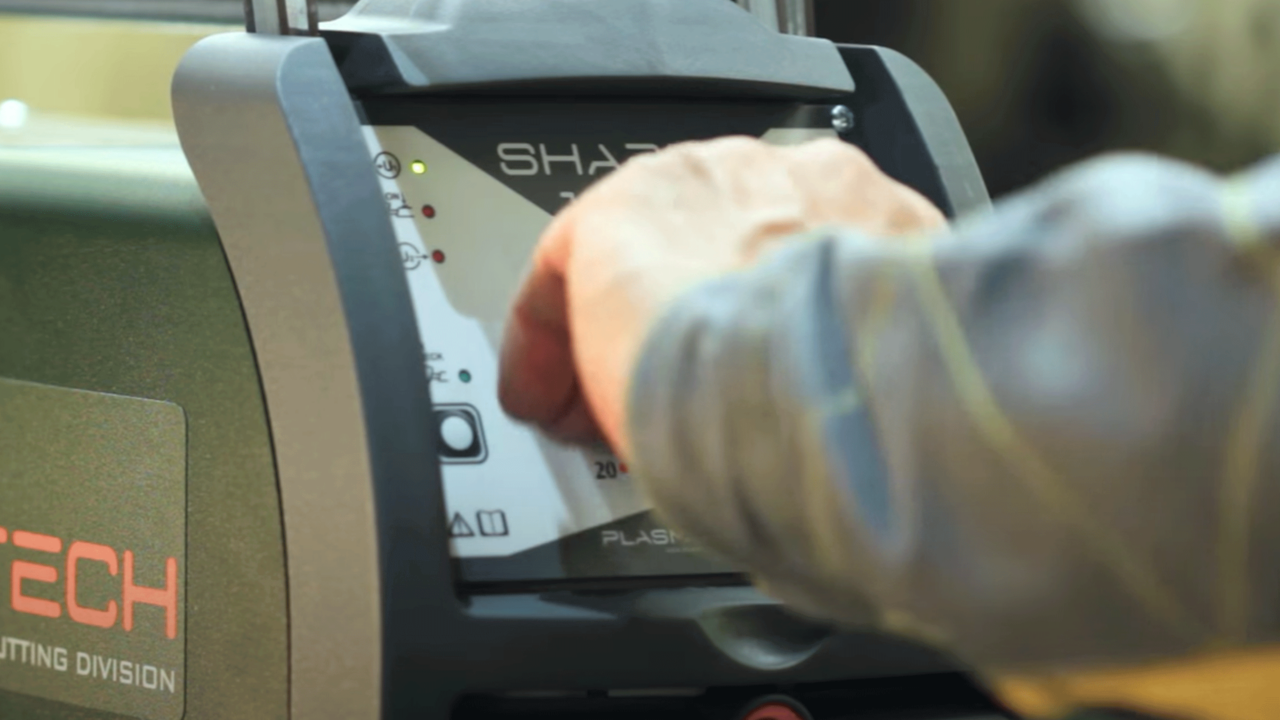

Sloping front control panel, easy to read and adjust and highly visible from any direction
Electric protection on the torch for the maximum safety of the operator

Technical features

BACK STRIKING TECHNOLOGY

It represents the best solution for plasma torches up to 60 A. In conventional torches without high frequency, the arc striking is obtained by means of compressed air which moves away the electrode head from the inner part of the nozzle. This system causes, in the plasma flow exit area, both electrode and nozzle material deterioration because of burns and deformations subsequent to pilot arc striking between them. In contrast, the back striking system takes place in the rear side of the electrode and nozzle, thus leaving clean and unaltered the flow exit area.

Main advantages are:

Longer life of the consumables
Striking always precise and safe
Better cutting quality over time

CS - ORIGINAL SPARE PARTS

CS is CEA guarantee hallmark for CEA PLASMATECH consumables. All original consumables belonging to SK and SKM torches are CS marked to prove the origin. CS mark, present on all consumables, is the guarantee that all declared performances can be achieved thanks to CEA high quality production and experience. The use of CS consumables is strictly recommended for avoiding:

Overheating and damage to the torch and power source
Poor performance and worsening in cutting quality
voiding of CEA warranty

HIGH QUALITY MANUAL TORCH

SK torches are the result of years of CEA research to improve the performance of the plasma cutting, thus increasing its control and its thermal efficiency. The main advantages are:

high cutting speed
optimal quality and cleanliness of the cut surface
high concentration of the plasma cutting beam
lack of dross
reduction in the heat affected zone
longer life of the consumables
piercing on lamination achieved in shorter times
coaxial cable for a great flexibility and robustness

Available accessories

Discover all available accessories

Configurator

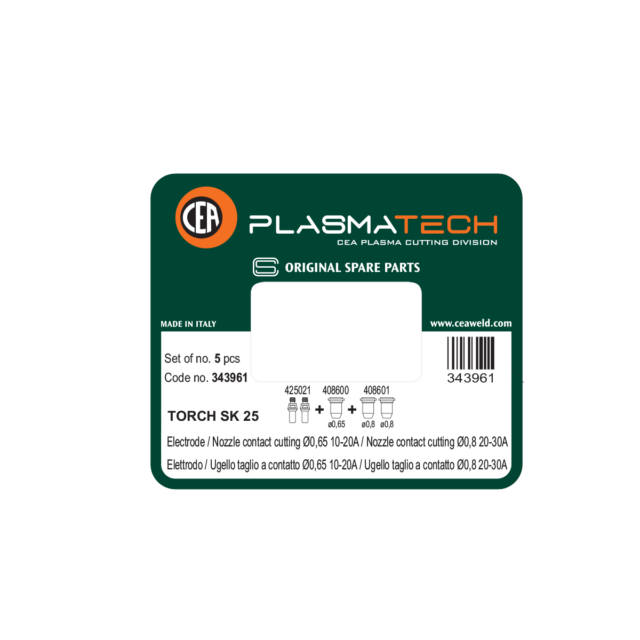

Starting Kit for SK25

Consumable Starting Kit for SK25: 2 Electrodes, 1 Nozzle ø 0,65 (10-20 A), 2 Nozzles ø 0,80 (20-30 A)

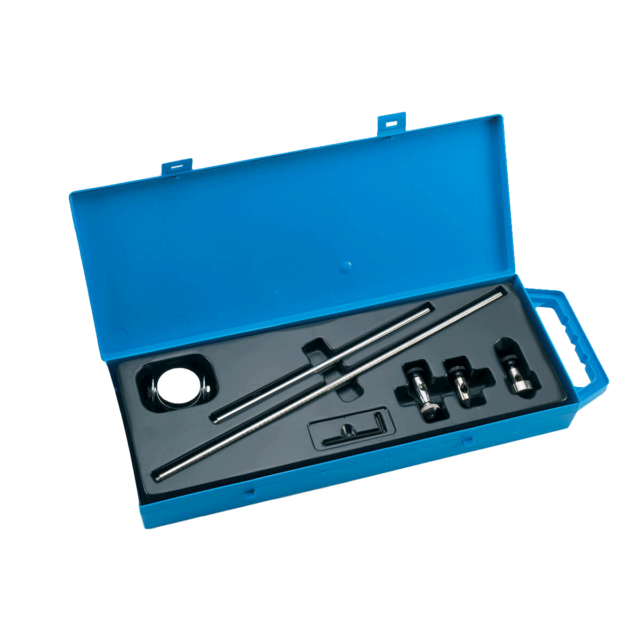

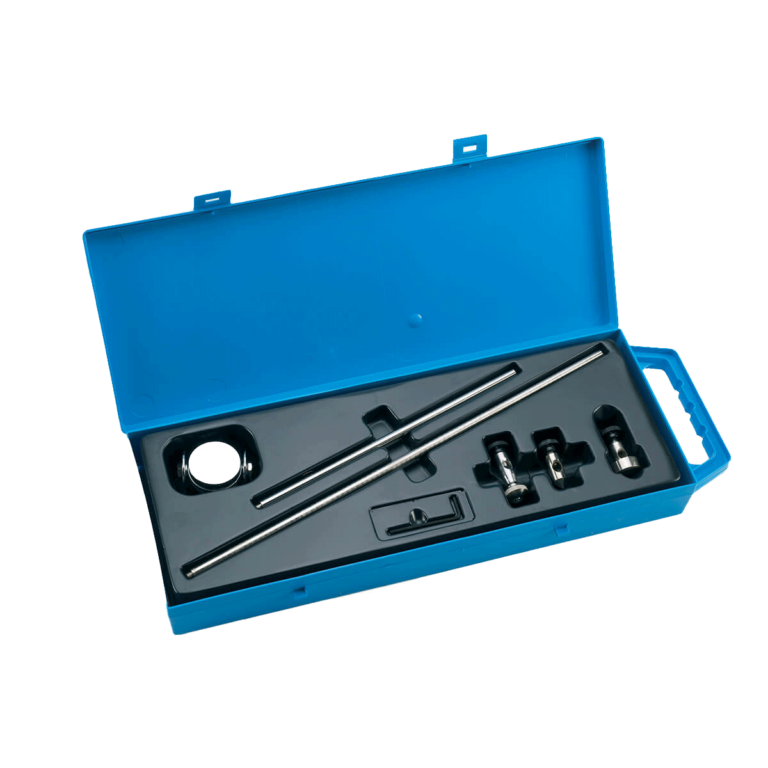

Compass

Compass for SK 25 / SK 65 torch

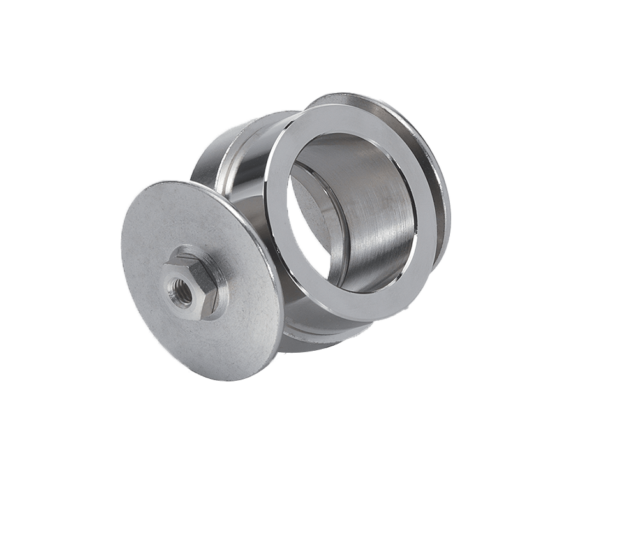

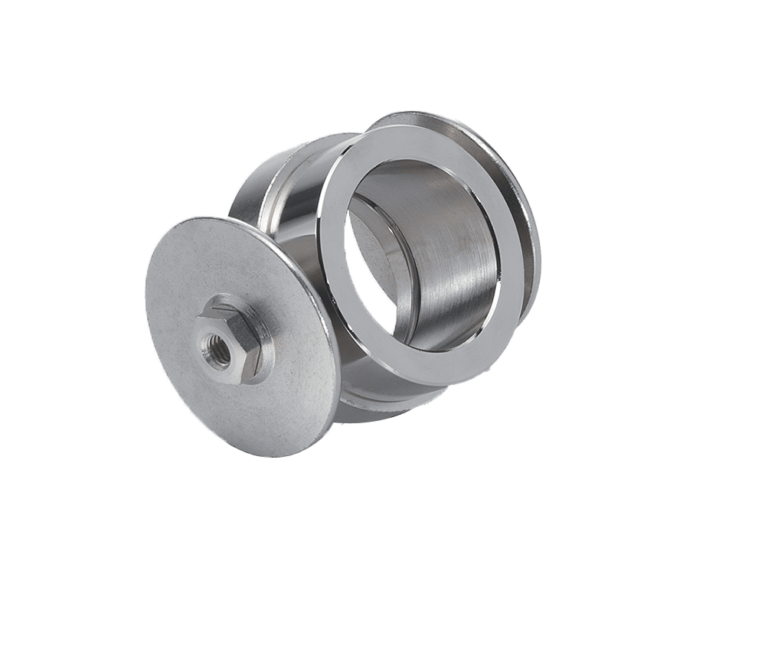

Wheeled torch holder

Trolley CTP 10

Transport Trolley CTP 10

Gallery

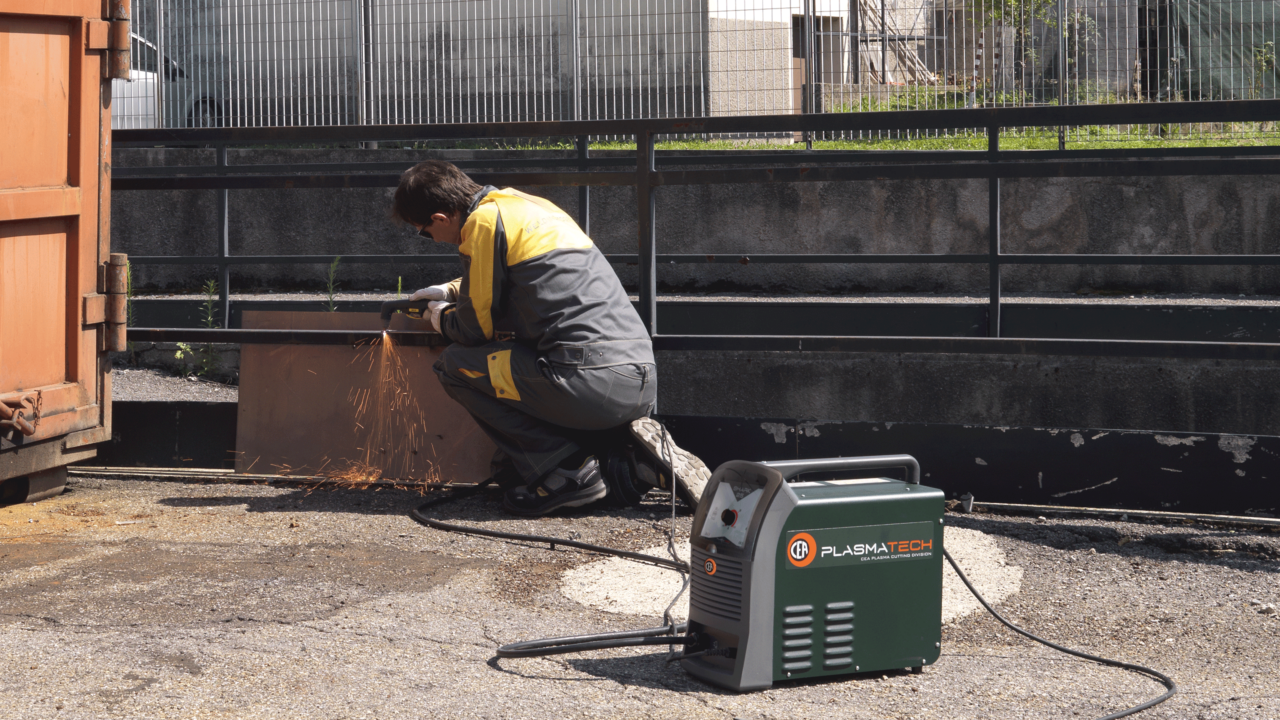

SHARK 35 Compressor at work

Datasheet

SHARK 35 Compressor: Technical features

TECHNICAL DATA			SHARK 35
Input Voltage 50/60 Hz		V	230-1ph
Input Power @ I₂ Max		kVA	6,05
Delayed Fuse (I₂ @ 100%)		A	16
Power Factor / cos φ			0,65/0,99
Efficiency Degree		%	80
Current range		A	10÷30
Duty Cycle (40°C)	100%	A	–
	60%	A	25
	40%	A	30
Motorgenerator requirement for full capacity		kVA	8
Cutting Capacity	Recommended	mm	8
	Maximum	mm	10
	Severance	mm	15
	Piercing	mm	–
Gas supply			Air
Gas Pressure		bar	3,5 – 4,0
Gas Flow		l/min	70 ÷ 80
Protection Class		IP	23 S
Dimensions (LxWxH)		mm	425 x 220 x 540
Weight		kg	20,5
