SMART / SMARTCAR PULSE

ERGONOMIC AND EASY TO USE

MIG-MAG INVERTER COMPACT EQUIPMENT

SMART are a new MIG/MAG compact power source with conventional manual adjustment of the parameters, while SMARTCAR PULSE are a new multiprocess synergic power sources for welding in MIG/MAG, MMA and TIG with “Lift” mode characterized by an innovative user-friendly design.

SMARTCAR
SMARTCAR PULSE

New ergonomic level

SMART and SMARTCAR PULSE combine ergonomics and ease of use with an incredible welding quality with a precise and stable arc in all situations, which makes them perfect for all qualified welding applications, especially in metal sheet working, car body repair sector,agriculture and maintenance.

Excellent welding quality

SMARTCAR PULSE because of its additional Synergic control and Pulse and Dual Pulsefunction, grants high quality performance on all materials and in particular on stainless steel,zinc coated and aluminium, by greatly minimizing any reworking job caused by spatters.

Other characteristics

  • vision.COLD included in SMARTCAR 305 PULSE
  • Digital control with synergic curves preset (*)
  • Easy-to-use selection and recalling of the parameters and welding programs (*)
  • Lodging for wire spools up to Ø 300 mm
  • Inspection window in the spool cover
  • Professional double groove feeding mechanism with 4 rolls of large diameter
  • “Energy saving” to operate the power source cooling fan only when necessary

(*) Only for SMARTCAR PULSE

Technical features

Available accessories

Discover all available accessories

Configurator

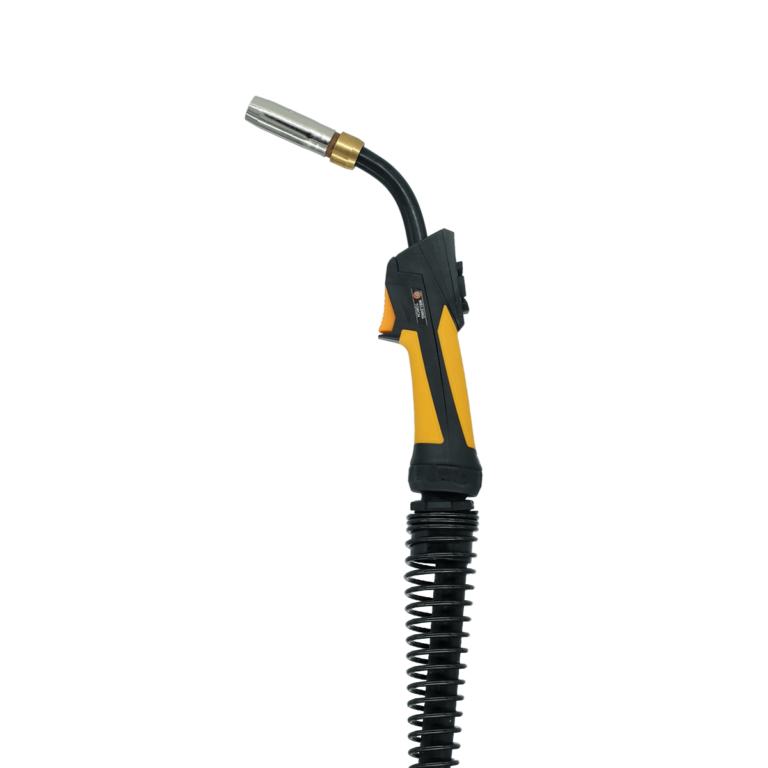

CEA Torch CX 251/3

CEA Torch CX 251/3 3 m wire Ø 0.6÷1.0 CO2 260A @60% / Mix 200A @60%

CEA Torch CX 251/4

CEA Torch CX 251/4 4 m wire Ø 0.6÷1.0 CO2 260A @60% / Mix 200A @60%

CEA Torch RTX 26.4

CEA Torch RTX 26.4 4 m – 180 A 35%

25 mm² / 3 m Ground cable with clamp

25 mm² / 3 m Ground cable with clamp

35 mm² / 4 m Ground cable with clamp

35 mm² / 4 m Ground cable with clamp

Reducer with 2 manometers
Reducer with 2 manometers
TS1 - Torch support

TS1 – Torch support

Datasheet

SMART / SMARTCAR PULSE: Technical features

TECHNICAL DATA SMART 200 SMART 300  SMARTCAR 205 PULSE SMARTCAR 305 PULSE
MIG/MAG MIG/MAG MIG/MAG TIG MMA MIG/MAG TIG MMA
Single phase input 50/60 Hz V +10%
-10%
230 230
Three phase input 50/60 Hz V +10%
-10%
400 400
Input Power @ I2 Max kVA 10,1 13,3 10,1 6,3 9,4 13,3/11,9 PULSE 11,6 11,9
Delayed Fuse (l eff) A 16 16 16 16
Power Factor / cos φ 0,64/0,99 0,75/0,99 0,64/0,99 0,64/0,99 0,64/0,99 0,75/0,99

0,73/0,99 PULSE

0,69/0,99 0,75/0,99
Efficiency Degree 0,80 0,86 0,80 0,86
Open circuit voltage V 60 60 60 60 60 60 60 60
Current range A 10-200 10-300 10-200 5-175 10-175 10-300

10-270 PULSE

5-300 10-250
Duty cycle at (40°C) A 100% 100 180 100 100 90 180 180 180
A 60% 115 200 115 115 110 200 200 200
A X% 200(15%) 300(30%) 200(15%) 175(20%) 175(10%) 300(30%)

270 (30%) PULSE

300(30%) 250(35%)
Wires Ø mm 0,6-1,2 0,6-1,2 0,6-1,2
Coil Ø mm 300 300 300
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S 23S 23S
Dimensions (LxWxH) mm 960 x 420 x 885 960 x 420 x 885 960 x 420 x 885
Weight kg 38,5 40 38,5 40
