WF5
Arc welding

WF5

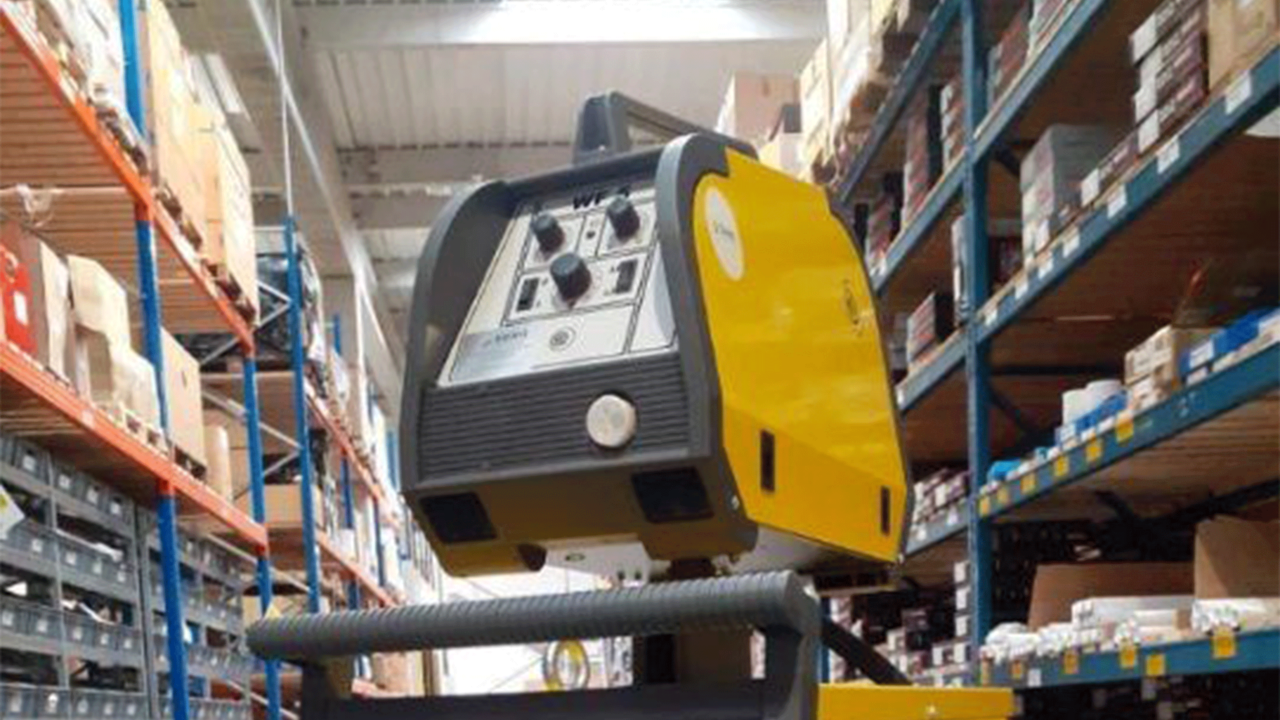

CLOSED MIG WIRE FEEDER

DESIGNED FOR PROFESSIONAL APPLICATIONS

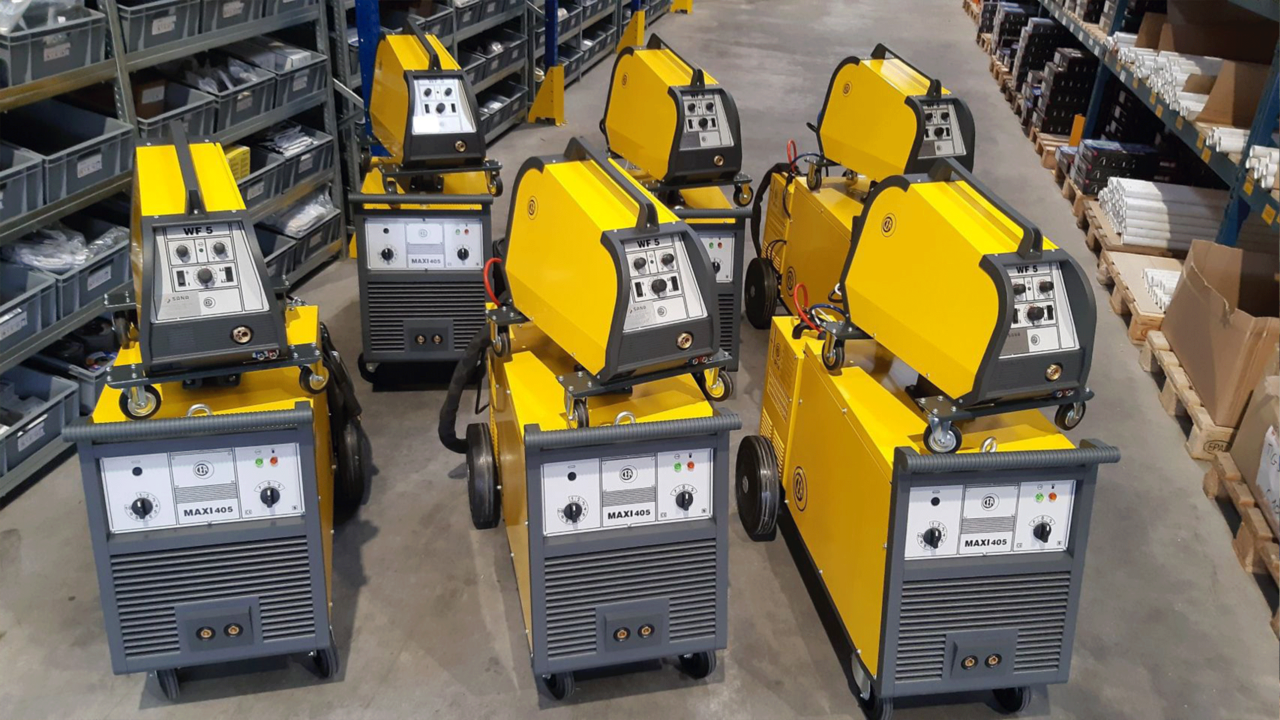

This wire feeder is suitable to be used with MAXI i and MAXI (unless Synergic Version).WF 5 feeder has been designed for use with all kinds of solid and cored wire.Its robust metallic main structure with shock proof plastic front panels protects all connections and adjustment controls.

4 ROLLS PROFESSIONAL WIRE FEEDING MECHANISM

4 roll professional wire feeding mechanism.
WF 5 feeder has been designed for use with all kinds of solid and cored wire.

OTHER CHARACTERISTICS

  • Dual-wire rolls allow two different wire types to be available on one drive roll, replaceable without any tool
  • Graduated knob to achieve the most correct value of the wire pressure, which remains unchanged also after any arm opening and closing
  • Wire speed electronic adjustment
  • External Burn-Back and motor ramp adjustments for a precise arc striking
  • 2 / 4 stroke selector switch
  • Gas purge and wire inch switch
  • Excellent stability
  • Sloping lodging for wire spools (up to 300 mm Ø / 20 kg)
  • Robust handle and lifting eyebolt

Datasheet

WF5: Technical features

TECHNICAL DATA WF 5
Single phase input 50/60 Hz V 48
Motor power W 100
Rolls No. 4
Feeding speed m/min 0,5 / 20
Solid wire (steel) Ø mm 0,6 / 2,4
Spool Ø mm

kg

 300

20 MAX
Dimensions (LxWxH) mm 570 x275 x 400
Weight kg 17
