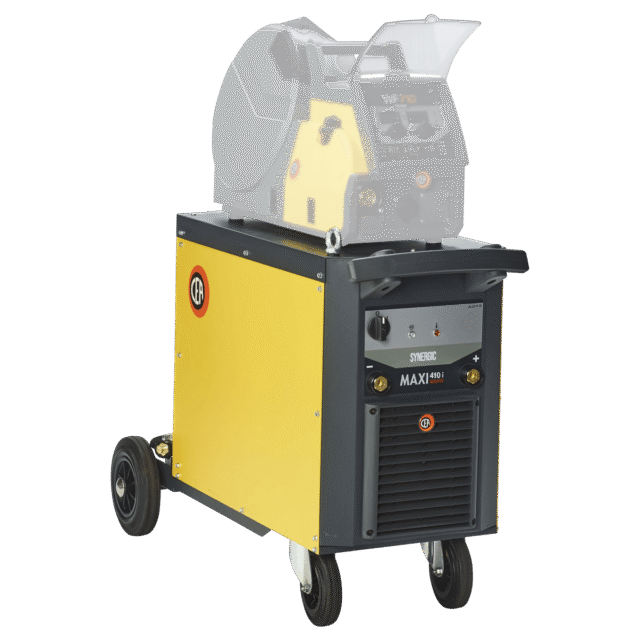

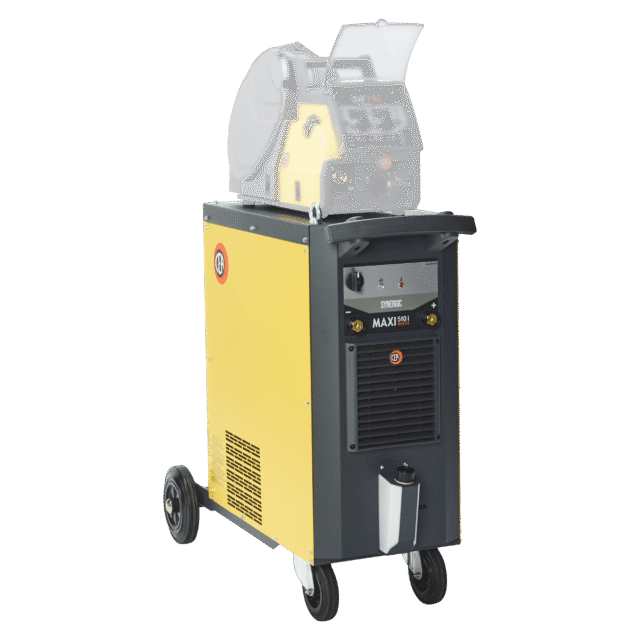

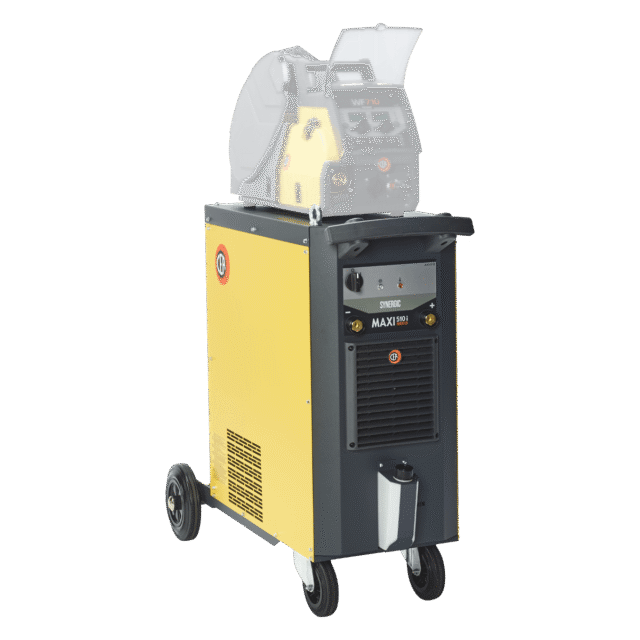

MAXI i SYNERGIC
Arc welding

MAXI i SYNERGIC

SIMPLE, STRONG, MULTIPROCESS AND SYNERGIC

MIG-MAG INVERTER SYNERGIC EQUIPMENT WITH SEPARATE WIRE FEEDER

MAXI i SYNERGIC are multi-process equipment characterized by a synergic digital control and inverter technology, integrated into a sturdy and functional metallic structure, with a separate wire feeder. Technologically advanced, robust and easy-to-use, they allow high quality welding in MIG-MAG, MMA, TIG with “Lift” mode.

MAXI i

Full synergic control

The user-friendly interface makes MAXI i SYNERGIC easy to operate without any advanced training. Once the wished program has been selected, the welding control automatically sets the best parameters based on the material type, wire diameter and gas being used.

Simple, strong and reliable

MAXI i SYNERGIC are the best choice in all industrial fields for all qualified applications requiring high precision and repeatability of the welding results, such as medium and large fabrication work, shipyards and steel erection.

Other characteristics:

  • Parameter control directly from the wire feeder
  • Digital control of the welding parameters with synergic curves preset according to used type of material, gas and wire diameter
  • “Smart JOB” key to quickly recall 3 favourite JOBs
  • “Energy saving” function to operate the power source cooling fan and torch water cooling only when necessary
  • Excellent arc striking always precise and efficient
  • Ability to partially or totally lock the equipment with access key by password
  • Great robustness due to solid metallic main structure
  • Initial and final crater control
  • Water cooling equipment integrated into the power source (W version) or retrofittable thanks to the dedicated water cooling retrofit kit

Technical features

Available accessories

Discover all available accessories

Configurator

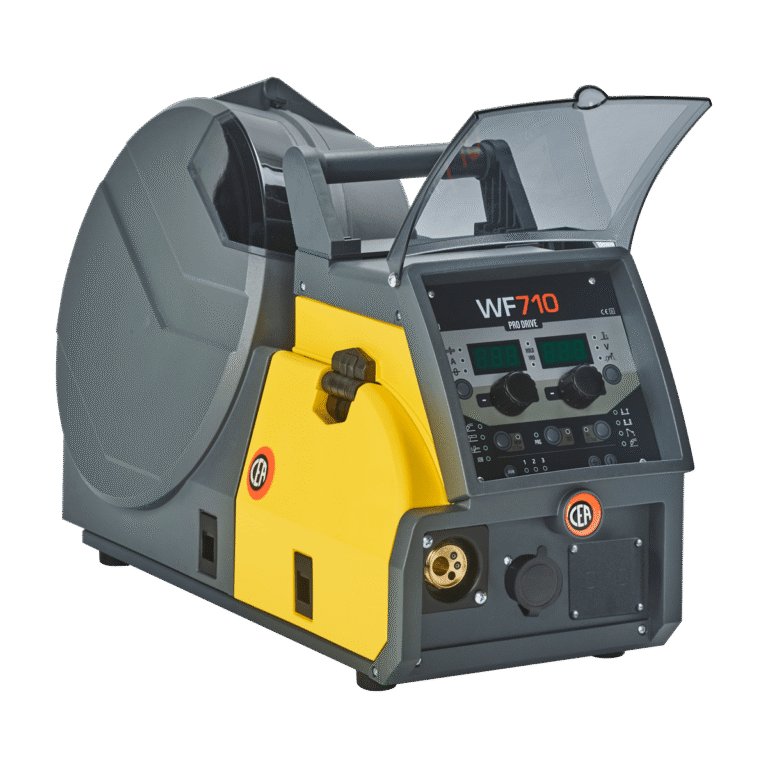

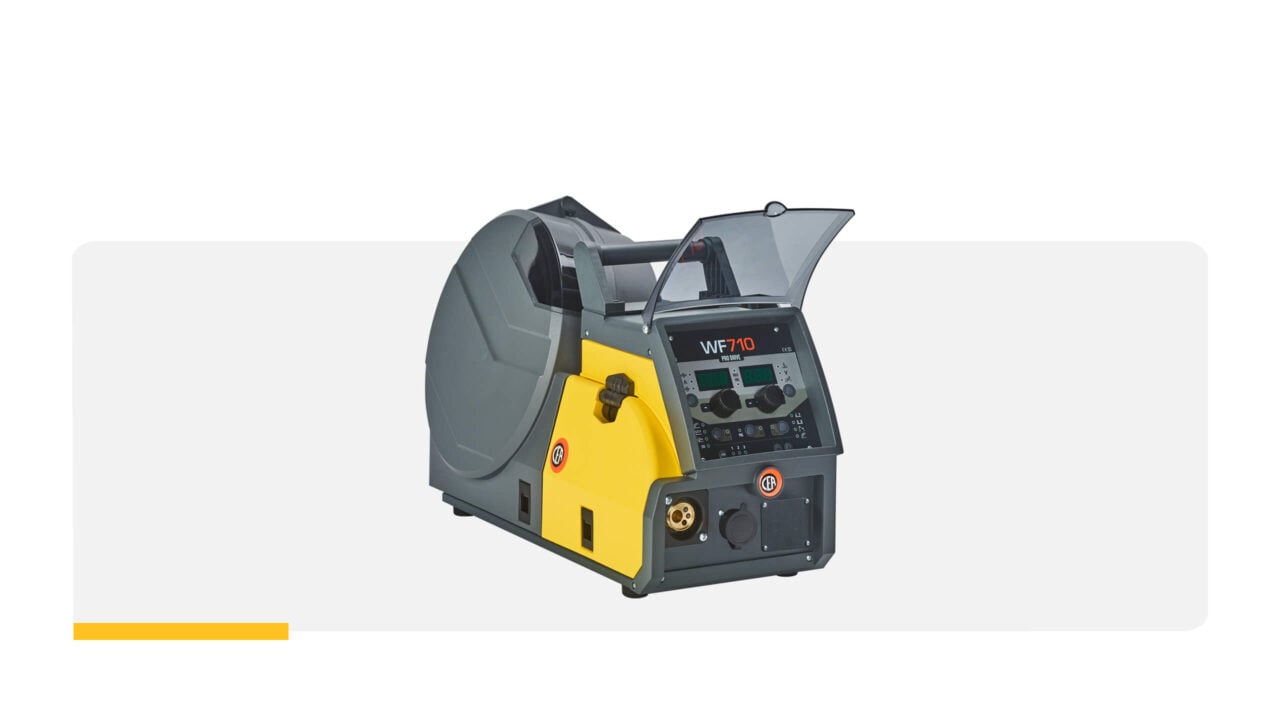

Closed Wire Feeder WF 710

Closed Wire Feeder WF 710 4 rolls (Ø: 1,0 / 1,2) with voltage regulation

MXi SYN

Accessories type: “MXi SYN” to connect water cooled interconnecting cable to the wire feeder

WK 4 standard wheels kit

WK 4 standard wheels kit

WK 2 extra-large wheel kit

WK 2 extra-large wheel kit

HK 2 Hanging Kit

HK 2 Hanging Kit for wire feeder WF

TS1 - Torch support

TS1 – Torch support

INTERCONNECTING CABLE 1,2 m AIR

1,2 m Air cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 5 m AIR

5 m Air cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 10 m AIR

10 m Air cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 1,2 m WATER

1,2 m Water cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 5 m WATER

5 m Water cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 10 m WATER

10 m Water cooled Interconnecting cable Power source-Wire feeder

CEA Torch CX 353/4

CEA Torch CX 353/4 4 m wire Ø 0.8÷1.2 CO2 340A @60% / Mix 290A @60%

CEA Torch CX 451/4

CEA Torch CX 451/4 4 m wire Ø 0.8÷1.6 CO2 400A @60% / Mix 300A @60%

CEA Torch CXH 302/4

CEA Torch CXH 302/4 4 m wire Ø 0.8÷1.2 water cooled CO2 300A @100% / Mix 250A @100%

CEA Torch CXH 402/4

CEA Torch CXH 402/4 4 m wire Ø 0.8÷1.6 water cooled CO2 500A @100% / Mix 450A @100%

50 mm² / 4 m Ground cable with clamp

50 mm² / 4 m Ground cable with clamp

Reducer with flowmeter and 1 manometer

Reducer with flowmeter and 1 manometer

Cea CL-1100

Cea CL-1100 cooling liquid – 5 l Tank

Retrofit water-kit for MAXII

Water-kit for retrofitting a MAXII air-cooled into a MAXII water-cooled

IR 14 400V

Water cooling equipment IR 14 400 V

Cable winding kit

Cable winding kit (Maxi I/Maxiq/Qubox)

Gallery

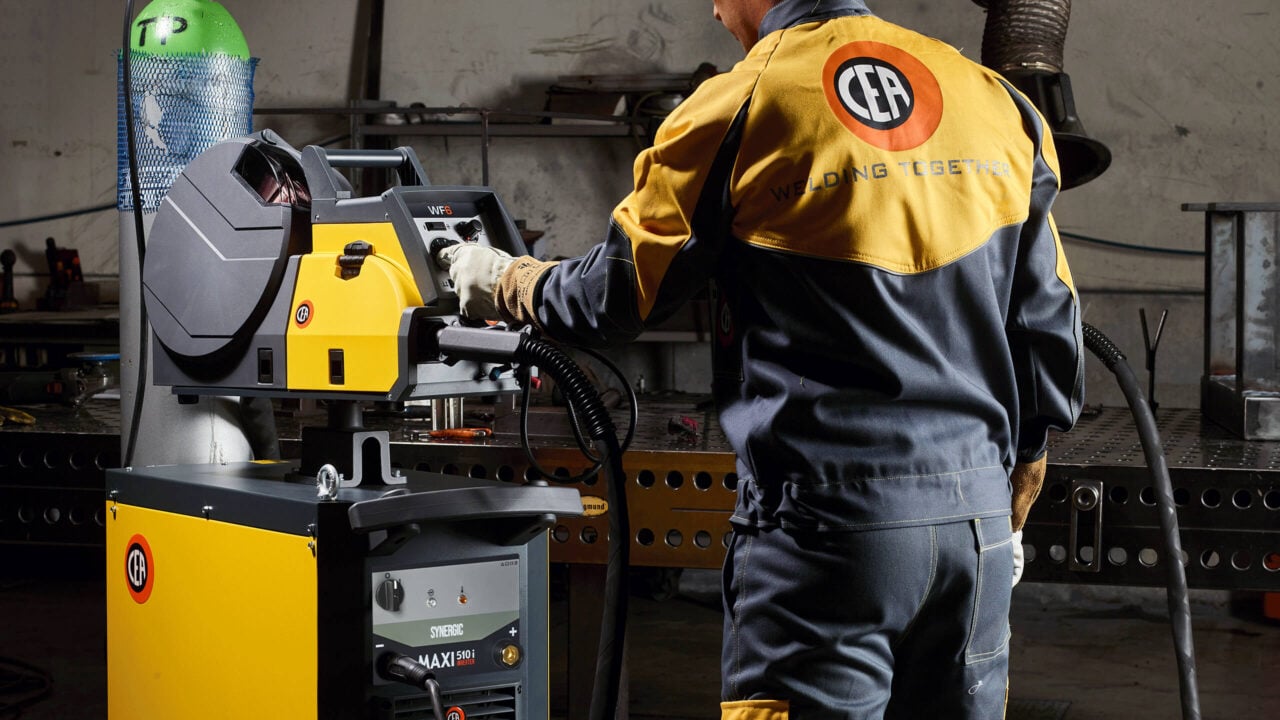

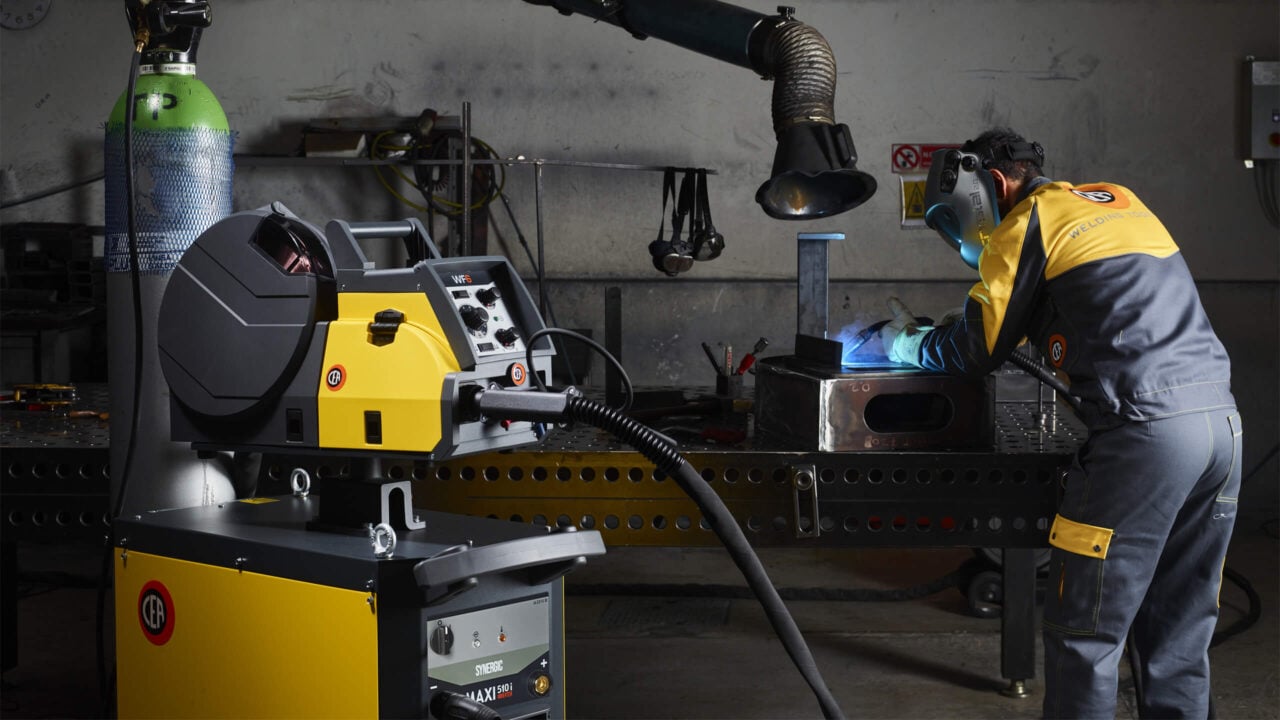

MAXI i SYNERGIC at work

Datasheet

MAXI i SYNERGIC: Technical features

TECHNICAL DATA MAXI i SYNEGIC
410 410 w 510 510 w
Three phase input 50/60 Hz V +20%
-20%		 400 400 400 400
Input Power @ I2 Max kVA 17 17,5 23,5 24
Delayed Fuse (l eff) A 16 16 20 20
Power Factor / cos φ 0,92/0,99 0,92/0,99 0,94/0,99 0,94/0,99
Efficiency Degree 0,87 0,87 0,87 0,87
Open circuit voltage V 50 50 56 56
Current range A 20-400 20-400 20-500 20-500
Duty cycle at (40°C) A 100% 280 280 330 330
A 60% 320 320 400 400
A 35% 400 400 500 500
Wires Ø mm 0,6 – 1,6 0,6 – 1,6 0,6 – 1,6 0,6 – 1,6
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S 23S 23S 23S
Dimensions (LxWxH) mm 1000 x 500 x 710 1000 x 500 x 930 1000 x 500 x 710 1000 x 500 x 930
Weight kg 48 61 52 65
