DIGITECH VP4 COMPACT

Arc welding

DIGITECH VP4 COMPACT

THE WELDING EDGE (AVAILABLE FROM JUNE 2026)

COMPACT SYNERGIC MULTIPROCESS INVERTER PULSED POWER SOURCES WITH SEPARATED WIRE FEEDER

DIGITECH VP4 (Vision Pulse 4) are the most advanced and top performing compact multi-process pulse welding equipment of CEA.
Developed with the latest CEA arc control software, DIGITECH VP4 obtain incredible quality results with any material in all welding applications.
DIGITECH VP4 are characterized by the new X Vision Plus interface with colour display and a synergic control to automatically determine the best welding parameters, based on the used type of material, the wire diameter and
the gas.

DIGITECH VP4

Top welding performance

Technologically ahead and easy-to-use, they offer premium welding quality at high speed in PULSED MIG, DUAL PULSED, MIG-MAG, MMA and TIG with “lift” arc striking. DIGITECH are characterized by a digital interface with 7” colour display and a synergic control to automatically determine the best welding parameters, based on the used type of material, the wire diameter and the gas.

Top Wire Feeding

DOUBLE GEAR wire feeding system
ERGONOMIC UNLOCKING of the roller fastening system
EASY ROLLS SUBSTITUTION without any tools
TWINS ROLLS for welding all wires
COLOR CODED for instant wire thickness recognition

Other characteristics

User Interface with LCD colour display to keep under control the whole welding process
Monitoring and repeatability of the welding parameters
Ability to partially or totally lock the equipment with access key by password
“Energy Saving” to operate the power source cooling fan and torch water cooling when necessary
Up/Down MIG torch
LAN connectivity to the network via Ethernet or WIFI (Optional)
Data storing and data printing (Optional)

Technical features

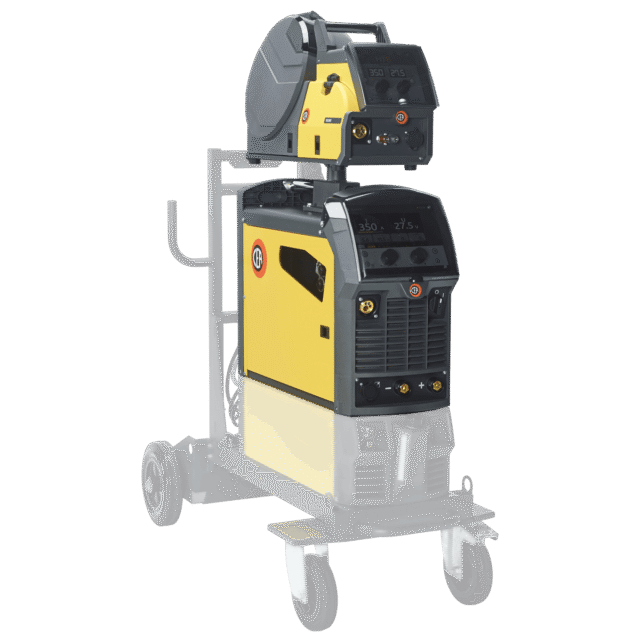

DIGITECH VP4 COMPACT WITH OPTIONAL SEPARATE WIRE GUIDE

The DIGITECH 3504 VP4 COMPACT can also be equipped with a separate wire feeder to benefit from a dual wire feeder configuration.
This is the ideal solution whenever greater flexibility is required in all applications using two different types of material, wire or gas.

DIGITECH VP4: SPECIAL PROCESSES

vision.ARC2 enables to weld with the following optional special processes:

MIG MAG

vision.COLD – vision.ULTRASPEED – vision.POWER – vision.PIPE

MIG PULSED

vision.PULSE-POWER – vision.PULSE-RUN -vision.PULSE-UP

E.C.P.

EXTRA CURVE PACKAGE

vision.ARC 2

vision.ARC 2 allows the power source control to operate in a more precise and faster way, thus granting an absolute constant arc and a perfect detachment of the droplet, mostly in MIG PULSED and DUAL PULSED.

vision.ARC2 also enables the use of the CEA special vision.Pulsed processes. Main advantages:

improved arc stability
optimization of the impulse characteristics
quick and precise control of the short- circuits
faster welding speed
further reduced heat input

vision.PULSE

vision.PULSE allows a constantly controlled short arc pulse welding, by optimizing the results of traditional pulse welding.

This enables to reduce the high heat input, typical in pulse welding, with a consequent reduction in distortions, an improvement off the puddle and considerable increase in welding speed too.

Dual.PULSE

Dual.PULSE favours a further reduction in the heat transfer to the workpiece by minimizing its deformation and it produces premium quality aesthetic beads similar to TIG finishing. Dual.PULSE is extremely useful when welding aluminium and stainless steel.

WSC - WIRE START CONTROL

WSC wire start control prevents any possible wire sticking to the workpiece or torch nozzle, by always ensuring a precise and “soft” arc striking.

CWS – CEA WELDING SUPERVISOR (OPTIONAL)

CEA WELDING SUPERVISOR is the best solution for recording and storing all welding data and settings from your DIGITECH VP4.
This advanced software offers you the unrivalled advantage of an intuitive web interface combined with precise and usable data collection.

The following is possible:
• Set current and voltage limits
• Read welding data in real time
• Create quality reports
• Export welding data to Excel
• Access the error log page
• Calculate the cost of the welding process
• Select jobs remotely
• Connect to a LAN (e.g. MES) via the MODBUSTCP or OPCUA protocols

SIMPLE AUTOMATION

CEA power sources are standard equipped with analogic-digital I/O. This allows to integrate very easily the power source into an automated welding equipment without any expensive and sophisticated external interfaces, usually necessarily supplied for robotics.

Available accessories

Discover all available accessories

Configurator

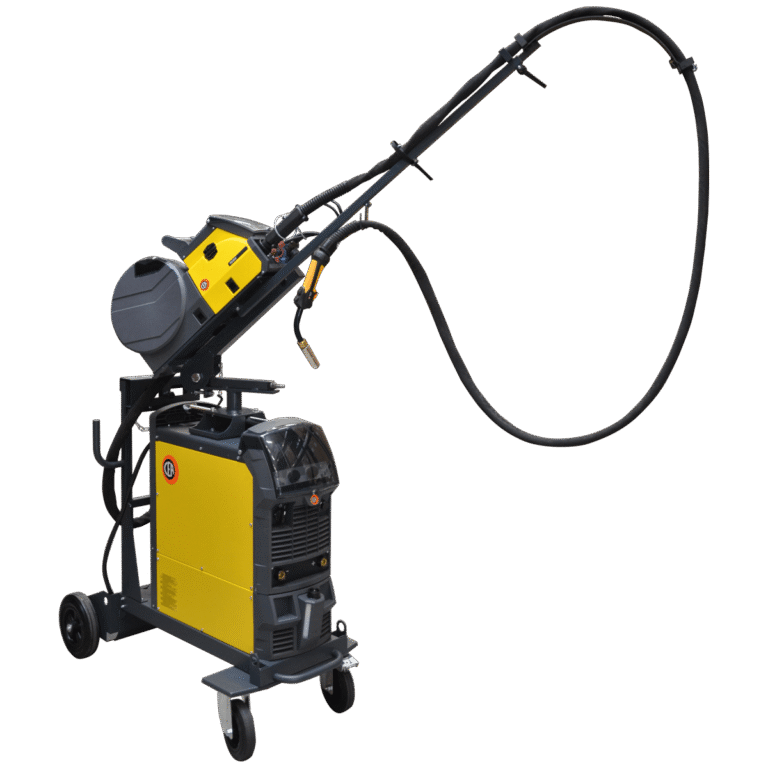

WS1 – Balanced arm for wire feeder

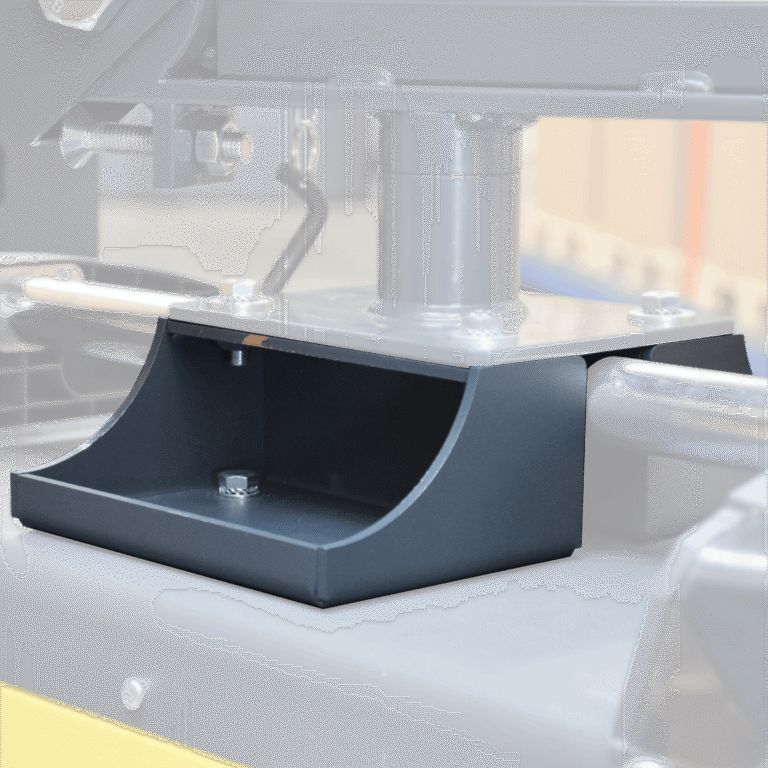

Adapter kit for WS1 with DIGITECH

Solid wire Kit of double grooved TWIN rolls (Ø 0,8/1,0)

Solid wire Kit of double grooved TWIN rolls (Ø 1,0/1,2)

Solid wire Kit of double grooved TWIN rolls (Ø 1,2/1,6)

Aluminium Kit of double grooved TWIN rolls (Ø 0,8/1,0)

Aluminium Kit of double grooved TWIN rolls (Ø 1,0/1,2)

Aluminium Kit of double grooved TWIN rolls (Ø 1,2/1,6)

Flux cored Kit of double grooved TWIN rolls (Ø 1,0/1,2)

Flux cored Kit of double grooved TWIN rolls (Ø 1,2/1,6)

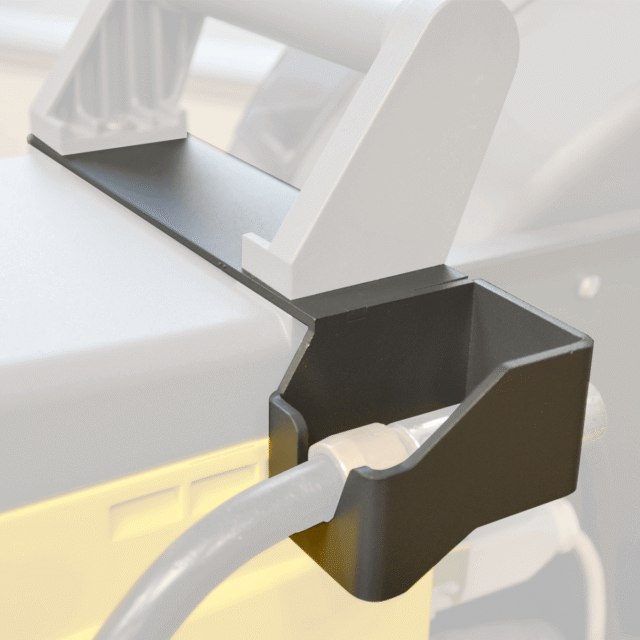

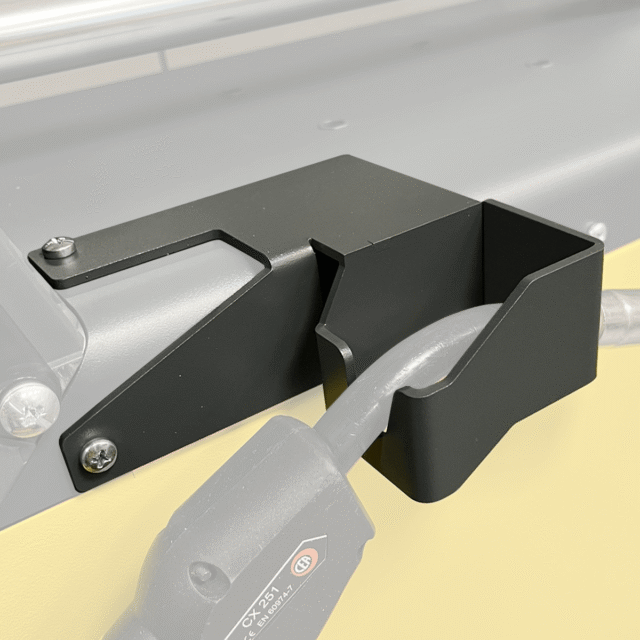

TS2 – Torch support kit

CEA Torch CX 353/4

CEA Torch CX 353/4 4 m wire Ø 0.8÷1.2 CO2 340A @60% / Mix 290A @60%

CEA Torch CX 353/4 Up/Down-17p

CEA Torch CX 353/4 Up/Down-17p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%

CEA Torch CXH 302/4

CEA Torch CXH 302/4 4 m wire Ø 0.8÷1.2 water cooled CO2 300A @100% / Mix 250A @100%

CEA Torch CXH 302/4 Up/Down-17p

CEA Torch CXH 302/4 Up/Down-17p 4m – wire: Ø 0,8/1,2 water cooled – CO2 300A @100% / Mix 250A @100%

CEA Digitorch DX 353/4-17p

CEA Digitorch DX 353/4-17p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%

CEA Digitorch DXH 302/4-17p

CEA Digitorch DXH 302/4-17p 4m – wire: Ø 0,8/1,2 water cooled – CO2 300A @100% / Mix 250A @100%

Push Pull Synchronizer 24/42V

Push Pull Synchronizer PC Board KIT 24 / 42 V (to be ordered with the Push pull torch)

CEA Torch RTX 26.4

CEA Torch RTX 26.4 4 m – 180 A 35%

HRX 52

Water cooling equipment HRX 52 400 V

Cea CL-1100

Cea CL-1100 cooling liquid – 5 l Tank

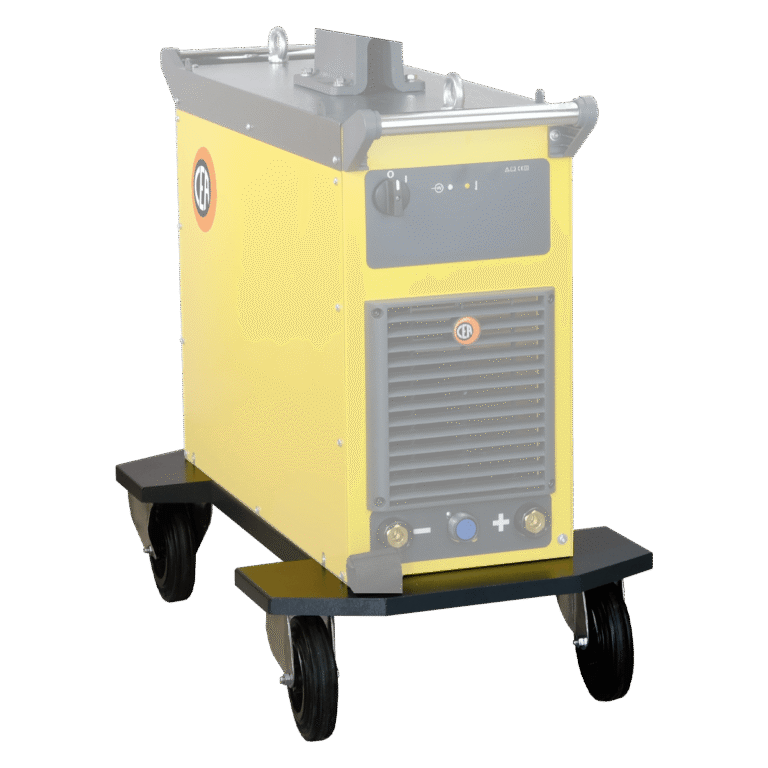

WK 3 extra-large wheels kit for Q-YARD

WK 3 extra-large wheels kit for Q-YARD (without cylinder holder)

Trolley CT 70

Trolley CT 70 with 4 rolls for power source, cooling equipment and cylinder (and autotransformer)

Trolley PRIME CT 80

Trolley CT 80 for power source, cylinder (and autotransformer)

BK 1 Accessory BOX kit

50 mm² / 4 m Ground cable with clamp

Reducer with flowmeter and 1 manometer

RC 178

RC 178 remote control with 5 m cable

Autotransformer A 13-H 220V/400V-50/60Hz

Autotransformer A 13-H 220V/400V-50/60Hz - 3 Phase

DFX5

DFX5 – Dust Filter for DIGITECH and MATRIX X 400 / X 500

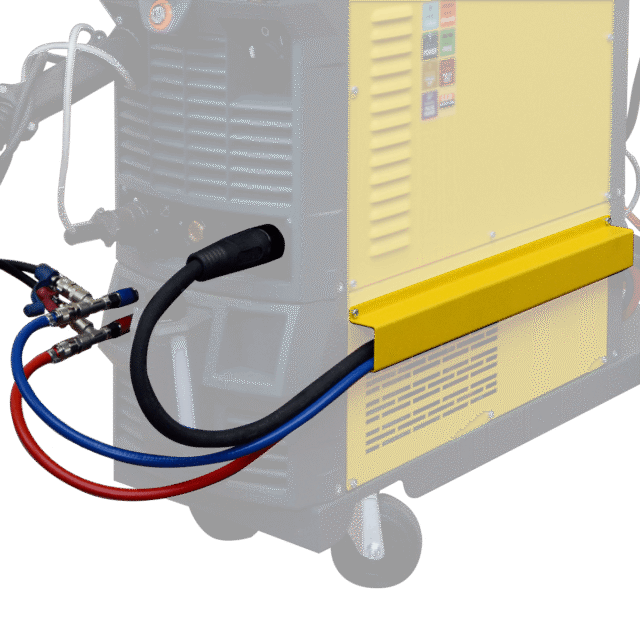

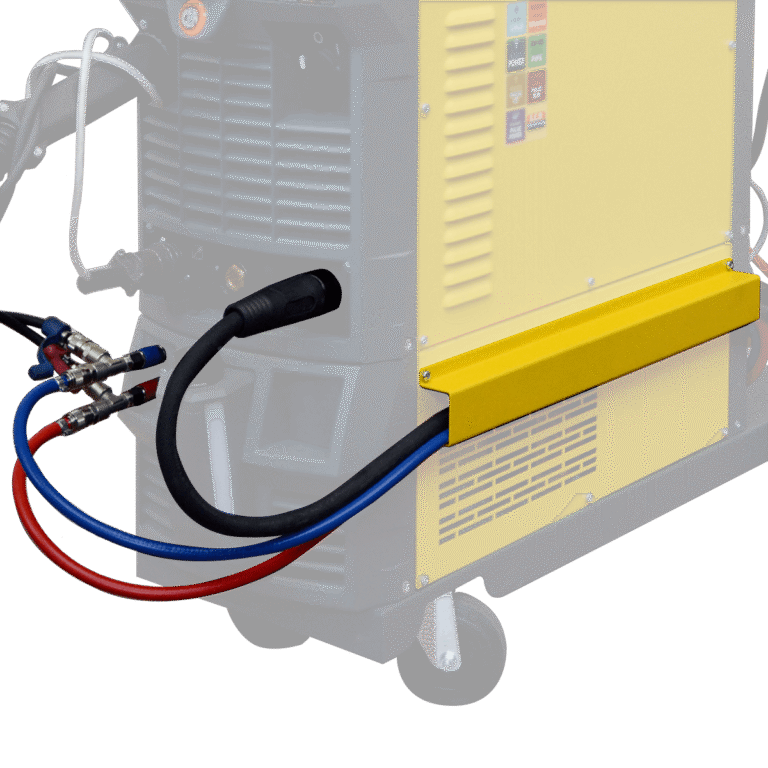

Kit DS1 for DIGITECH compact

Kit DS1 for DIGITECH compact in version with additional external wire feeder

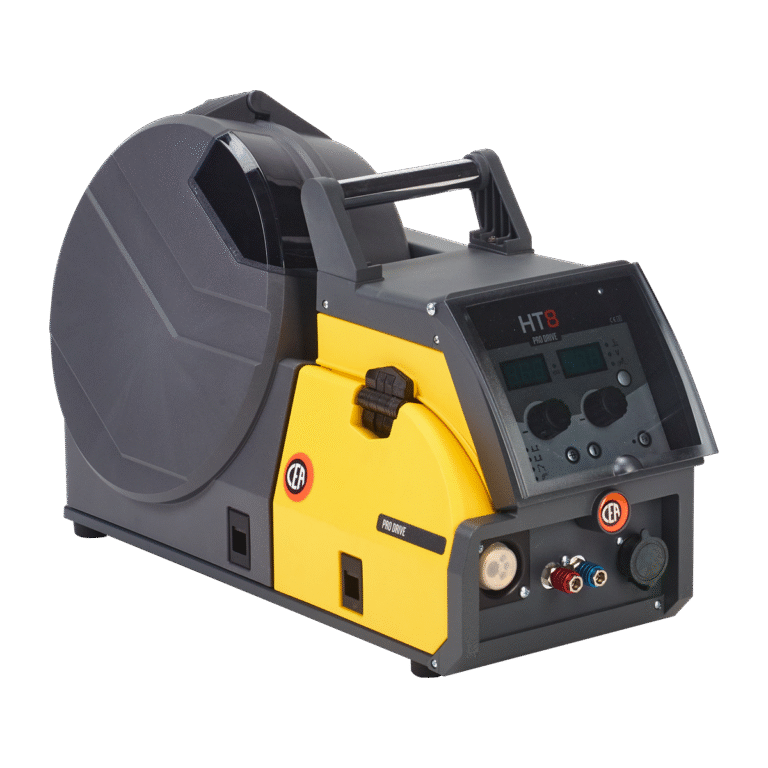

WIRE FEEDER HT8 PRO DRIVE

Wire Feeder HT 8 PRO DRIVE with Euro Connect. 4 rolls (Ø 1,0 / 1,2)

INTERCONNECTING CABLE 1,2 m WATER

1,2 m Water cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 5 m WATER

5 m Water cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 10 m WATER

10 m Water cooled Interconnecting cable Power source-Wire feeder

WK 4 standard wheels kit

HK 1 Hanging Kit

HK 1 Hanging Kit for wire feeder

WK 2 extra-large wheel kit

Datasheet

DIGITECH VP4 COMPACT: Technical features

TECHNICAL DATA			DIGITECH VP4
			3504
Three Phase input 50/60 Hz	V	10%	400
		-10%
Input Power @ I2 Max	kVA		18,7
Delayed Fuse (l eff)	A		20
Power Factor / cos φ			0,64/0,99
Efficiency Degree			0,88
Open circuit voltage	V		63
Current range	A		10-350
Duty cycle at (40°C)	A 100%		250
	A 60%;		280
	A 30%		350
Wires	Ø mm		0,6 – 1,6
Standards			EN 60974-1 – EN 60974-10

Protection Class	IP		23S
Dimensions (L x W x H)	mm		725x310x525
Weight	kg		43
